INSTALLATION
PROCEDURE
1. INSTALL PARK/NEUTRAL POSITION SWITCH ASSEMBLY
(a) Install the switch to the manual valve shaft.
|
(b) Temporarily install the bolt. |
|
(c) Install a new lock washer and the nut.
Torque:
6.9 N·m {70 kgf·cm, 61 in·lbf}
|

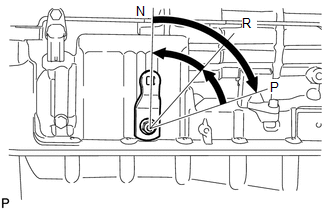

(d) Turn the control shaft lever LH clockwise until it stops, and then turn it counterclockwise 2 notches to set it to the N position. |
|
|

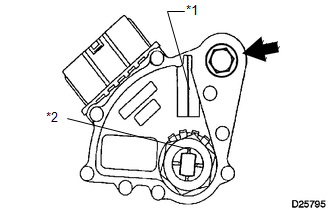

(e) Align the neutral basic line with the switch groove. Text in Illustration
|
|

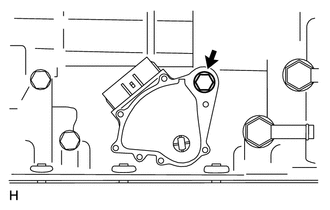

(f) Hold the switch in position and tighten the bolt.
Torque:
13 N·m {130 kgf·cm, 9 ft·lbf}
(g) Using a screwdriver, bend the tabs of the lock washer.
(h) Connect the switch connector.
2. INSPECT SHIFT LEVER POSITION
3. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY
