Toyota 4Runner: Parts Location

PARTS LOCATION

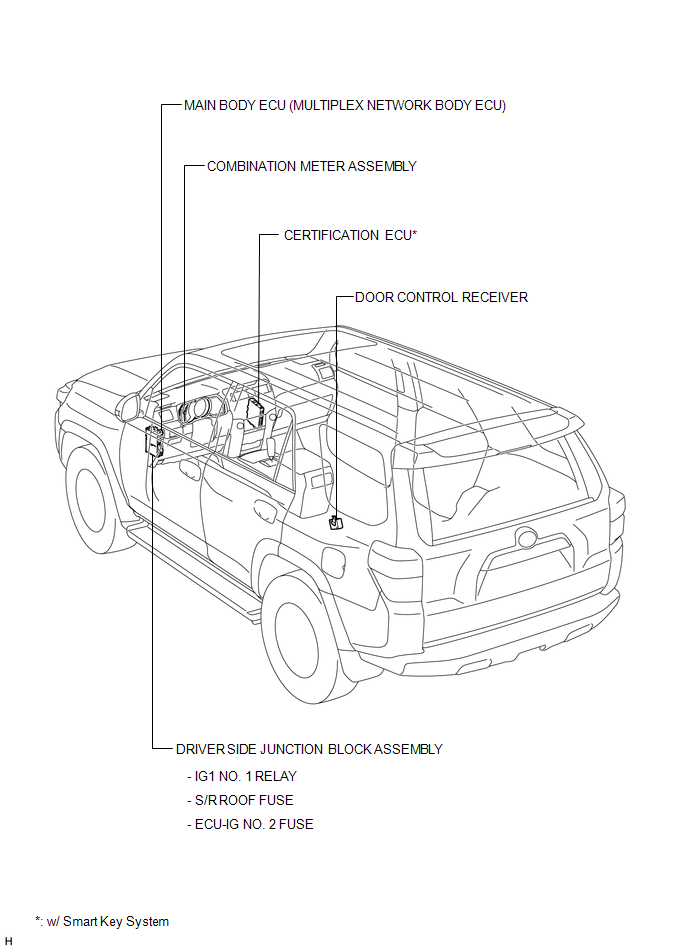

ILLUSTRATION


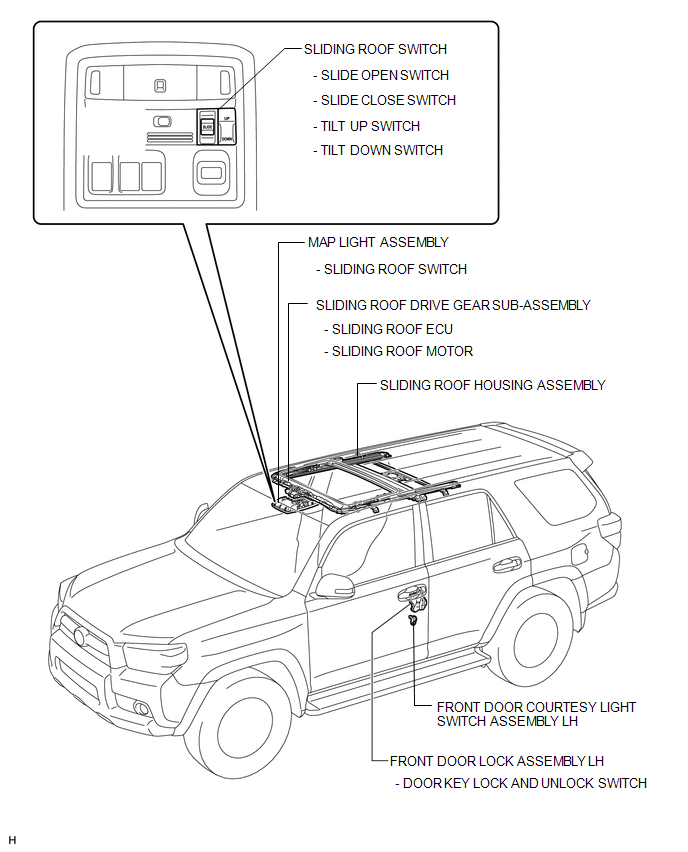

ILLUSTRATION


Precaution
PRECAUTION 1. IGNITION SWITCH EXPRESSIONS HINT: The type of ignition switch used on this model differs according to the specifications of the vehicle. The expressions listed in the table below ar ...

System Diagram
SYSTEM DIAGRAM Communication Table Sender Receiver Signal Line Main Body ECU (Multiplex Network Body ECU) Sliding Roof Drive ...
