Toyota 4Runner: Parts Location

PARTS LOCATION

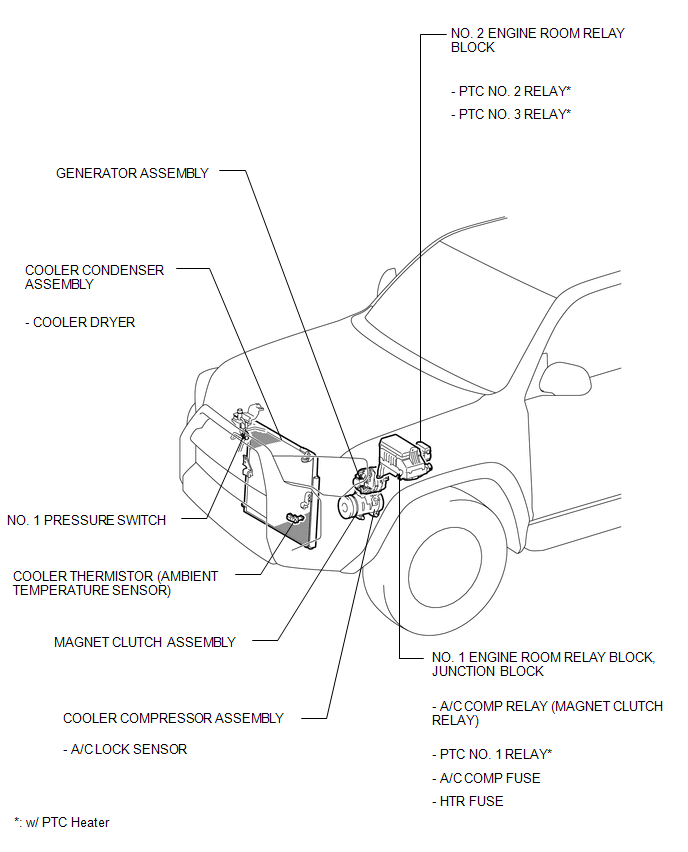

ILLUSTRATION

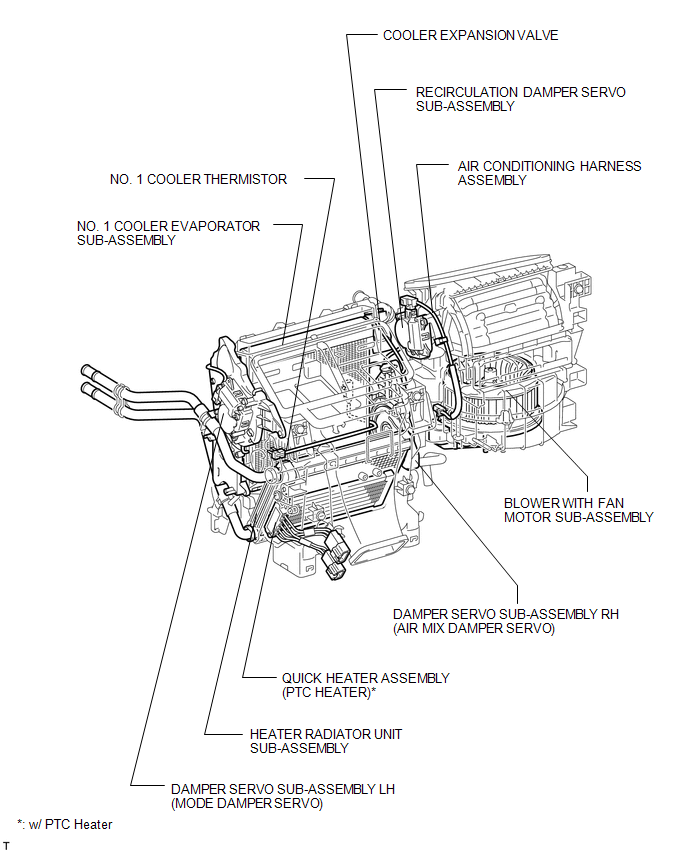

ILLUSTRATION

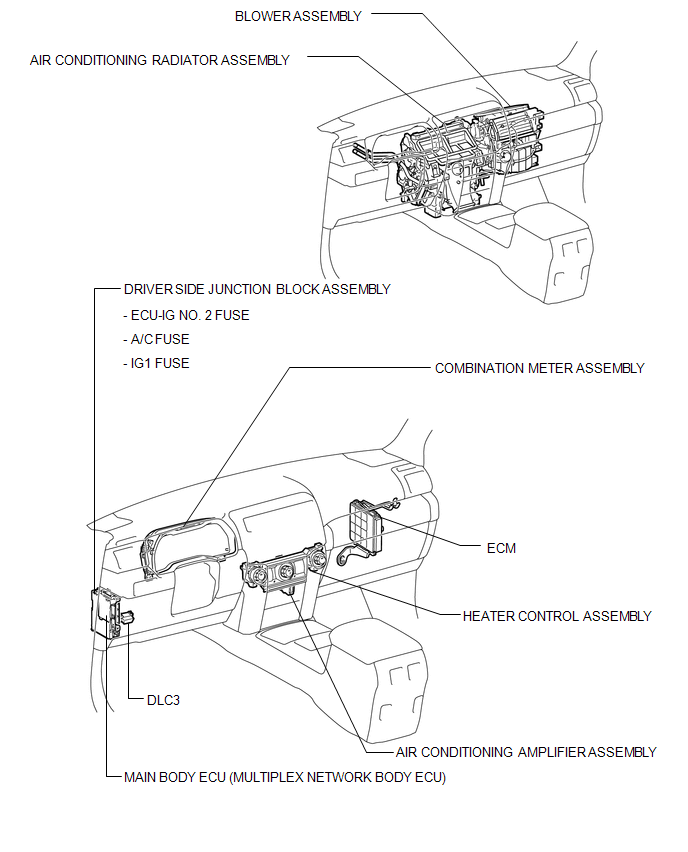

ILLUSTRATION


Air Conditioning System(for Manual Air Conditioning System)
...

Precaution
PRECAUTION 1. IF ANY OF FOLLOWING CONDITIONS ARE MET, KEEP ENGINE IDLING (ENGINE SPEED AT LESS THAN 2000 RPM) WITH AIR CONDITIONING SWITCH ON FOR AT LEAST 2 MINUTES Refrigerant gas has been ...

Other materials about Toyota 4Runner:

Air Outlet Damper Control Servo Motor Circuit (B1443)
DESCRIPTION The damper servo sub-assembly (mode damper servo) sends pulse signals to inform the No. 1 air conditioning amplifier assembly of the damper position. The No. 1 air conditioning amplifier assembly activates the motor (normal or reverse) based ...

Installation
INSTALLATION CAUTION / NOTICE / HINT CAUTION: Wear protective gloves. Sharp areas on the parts may injure your hands. HINT: Use the same procedure for the RH and LH sides. The procedure listed below is for the LH side. PROCEDURE 1. INS ...
