Toyota 4Runner: Rear Center Seat Inner Belt Assembly(for 60/40 Split Slide Walk-in Seat Type Rh Side)

Toyota 4Runner Service Manual / Vehicle Interior / Seat Belt / Rear Center Seat Inner Belt Assembly(for 60/40 Split Slide Walk-in Seat Type Rh Side)

Components

COMPONENTS

ILLUSTRATION


Installation

INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

HINT:

A bolt without a torque specification is shown in the standard bolt chart (See page ).


PROCEDURE

1. INSTALL REAR NO. 1 SEAT INNER BELT ASSEMBLY RH

(a) Install the inner belt with the nut.

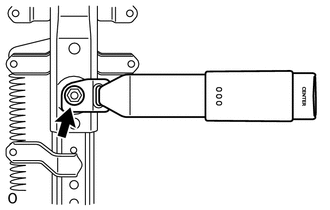

Torque:

42 N·m {428 kgf·cm, 31 ft·lbf}

2. INSTALL REAR SEAT ASSEMBLY RH

(a) Install the rear seat assembly RH (See page ).


Removal

REMOVAL

CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

PROCEDURE

1. REMOVE REAR SEAT ASSEMBLY RH

(a) Remove the rear seat assembly RH (See page ).


2. REMOVE REAR SEAT INNER BELT ASSEMBLY


(a) Remove the nut and inner belt.
