Before operating the rear window wiper and washer switch, make sure the back window is completely closed. The wiper operation is selected by moving the lever as follows:

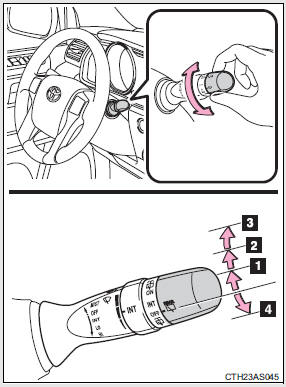

Type A
1. Intermittent window wiper operation 2. Normal window wiper operation 3. Washer/wiper dual operation 4. Washer/wiper dual operation
The wiper will automatically operate a couple of times after the washer squirts.
(After operating several times, the wiper operates one more time after a short delay to prevent dripping.)

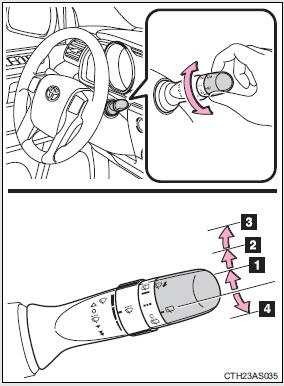

Type B
1. Intermittent window wiper operation 2. Normal window wiper operation 3. Washer/wiper dual operation 4. Washer/wiper dual operation
The wiper will automatically operate a couple of times after the washer squirts.
(After operating several times, the wiper operates one more time after a short delay to prevent dripping.)
The rear window wiper and washer can be operated when
• Vehicles without a smart key system: The engine switch is in the “ON” position.
Vehicles with a smart key system: The “ENGINE START STOP” switch is in IGNITION ON mode.
• The back window is completely closed.
Intermittent window wiper operation
• When intermittent window wiper operation mode is selected, the wiper will operate a couple of times and then switch to intermittent operation.
• During intermittent operation, the wiper stops temporarily at the reversing position.
When the rear window wiper and washer switch is turned off
The rear wiper will stop operation, and return to the retracted position after approximately 3 seconds.
However, if the engine switch is turned to the “ACC” or “LOCK” position (vehicles without a smart key system) or the “ENGINE START STOP” switch is turned to ACCESSORY mode or turned off (vehicles with a smart key system) while the rear wiper is operating, the rear wiper will stop at that position and will not return to the retracted position.
If no washer fluid sprays
Check that the washer nozzle is not blocked if there is washer fluid in the washer fluid reservoir.
Customization that can be configured at Toyota dealer
Settings (e.g. drip prevention function) can be changed.
(Customizable features )
NOTICE
When the rear window is dry
Do not use the wiper, as it may damage the rear window.
When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may overheat.
When a nozzle becomes blocked
Do not try to clear it with a pin or other object. The nozzle will be damaged.
