Toyota 4Runner: Relay(for Windshield Deicer)

On-vehicle Inspection

ON-VEHICLE INSPECTION

PROCEDURE

1. REMOVE DEICER RELAY (DEICER)

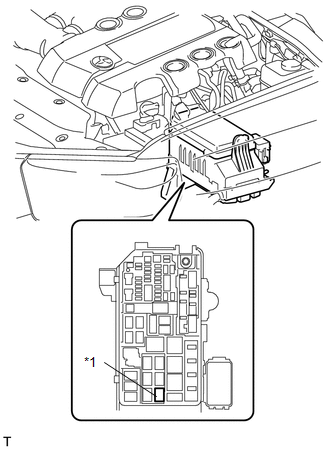

(a) Remove the deicer relay from the engine room relay block.

Text in Illustration

*1

Deicer Relay


2. INSPECT DEICER RELAY

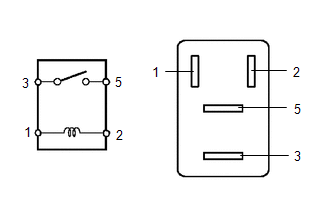

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

3 - 5

Battery voltage is not applied to terminals 1 and 2

10 kΩ or higher

3 - 5

Battery voltage is applied to terminals 1 and 2

Below 1 Ω

If the result is not as specified, replace the deicer relay.

3. INSTALL DEICER RELAY

(a) Install the deicer relay to the engine room relay block.
