On-vehicle Inspection

ON-VEHICLE INSPECTION

PROCEDURE

1. REMOVE DEFOGGER RELAY (DEF)

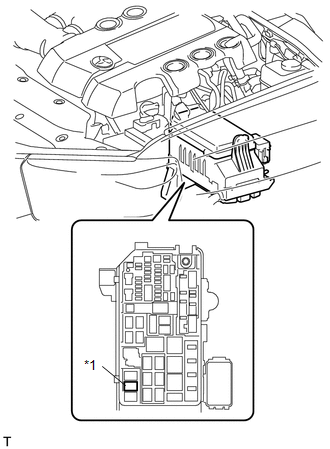

(a) Remove the defogger relay from the engine room relay block.

Text in Illustration

*1	Defogger relay

2. INSPECT DEFOGGER RELAY

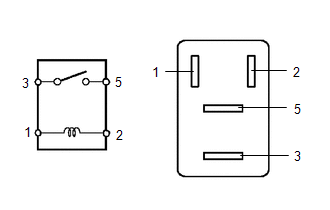

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
3 - 5	Battery voltage is not applied to terminals 1 and 2	10 kΩ or higher
3 - 5	Battery voltage is applied to terminals 1 and 2	Below 1 Ω

If the result is not as specified, replace the defogger relay.

3. INSTALL DEFOGGER RELAY

(a) Install the defogger relay to the engine room relay block.
