Toyota 4Runner: Telephone Microphone

Components

COMPONENTS

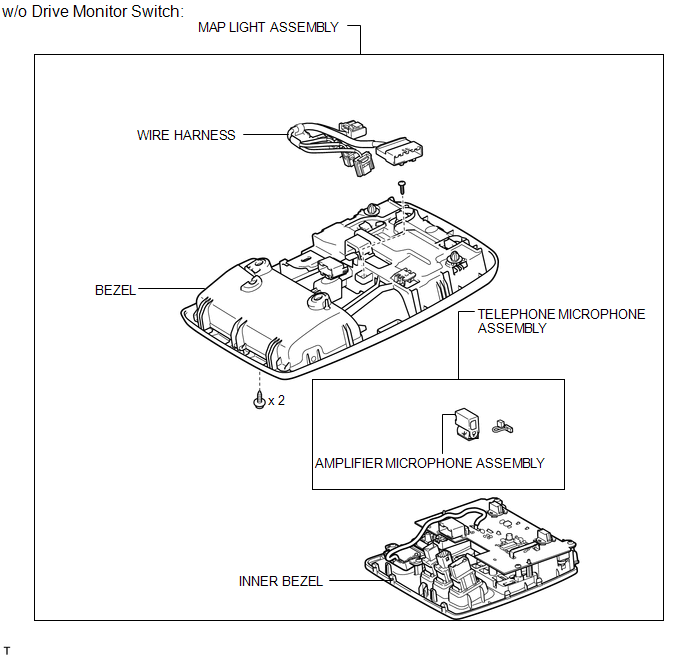

ILLUSTRATION

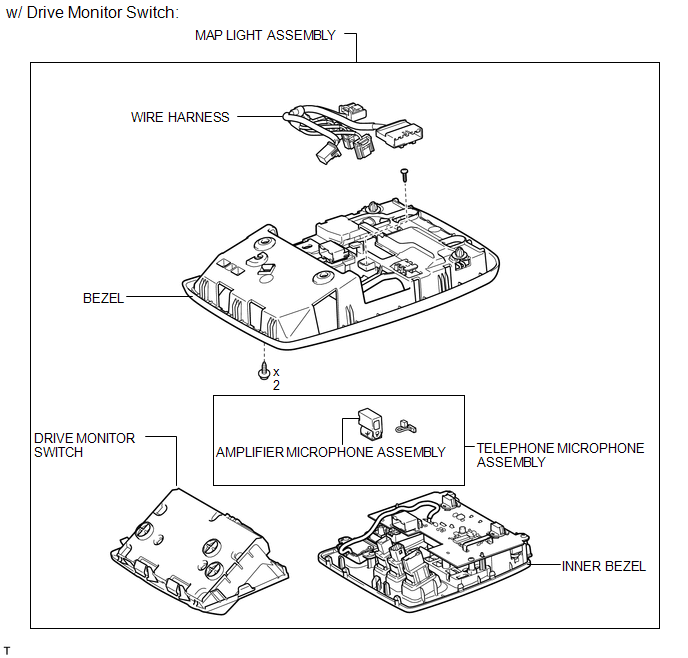

ILLUSTRATION


Removal

REMOVAL

PROCEDURE

1. REMOVE DRIVE MONITOR SWITCH


2. REMOVE MAP LIGHT ASSEMBLY


3. REMOVE TELEPHONE MICROPHONE ASSEMBLY

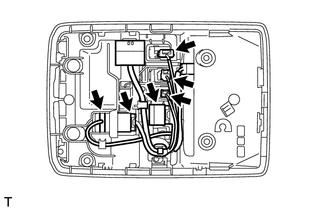

(a) Disconnect the 6 connectors.

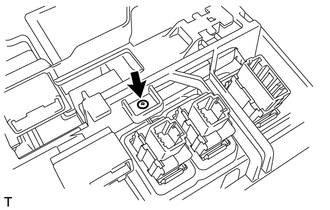

(b) Remove the screw.

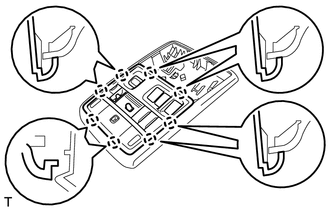

(c) Detach the 8 claws and remove the inner bezel.


(d) Disconnect the connector.

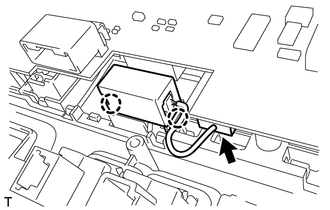

(e) Detach the 2 claws and remove the telephone microphone.

4. REMOVE AMPLIFIER MICROPHONE ASSEMBLY

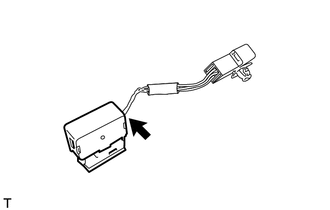

(a) Disconnect the connector and remove the amplifier microphone.


Installation

INSTALLATION

PROCEDURE

1. INSTALL AMPLIFIER MICROPHONE ASSEMBLY

(a) Connect the connector and install the amplifier microphone.

2. INSTALL TELEPHONE MICROPHONE ASSEMBLY

(a) Attach the 2 claws to install the telephone microphone.

(b) Connect the connector.

(c) Attach the 8 claws to install the inner bezel.

(d) Install the screw.

(e) Connect the 6 connectors.

3. INSTALL MAP LIGHT ASSEMBLY


4. INSTALL DRIVE MONITOR SWITCH
