Toyota 4Runner: Installation

INSTALLATION

PROCEDURE

1. INSTALL WIPER MOTOR WIRE

(a) Attach the claw to install the wiper motor wire.

2. INSTALL WINDSHIELD WIPER MOTOR ASSEMBLY

(a) Using a T30 "TORX" socket, install the wiper motor with the 2 bolts.

Torque:

7.5 N·m {76 kgf·cm, 66 in·lbf}

(b) Connect the connector.

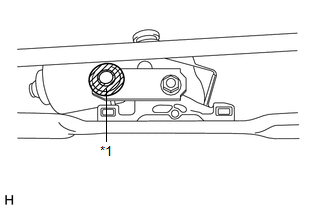

(c) Apply MP grease to the crank arm pivot of the wiper crank.

Text in Illustration

*1

Crank Arm Pivot

MP grease

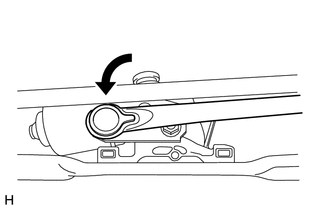

(d) Connect the rod to the crank arm pivot of the front wiper crank.


3. INSTALL WINDSHIELD WIPER MOTOR AND LINK

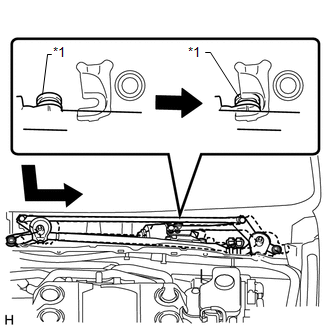

(a) Attach the grommet as shown in the illustration.

Torque:

7.0 N·m {71 kgf·cm, 62 in·lbf}

Text in Illustration

*1

Grommet

NOTICE:

Be careful not to damage the windshield when installing the windshield wiper motor and link assembly.


(b) Install the windshield wiper motor and link with the 2 bolts.

(c) Connect the connector.

(d) Attach the clamp.

4. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

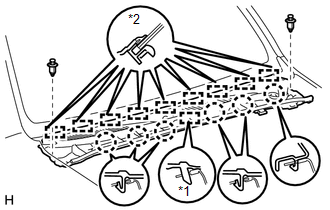

(a) Attach the 9 guides (B).

Text in Illustration

*1

Guide A

*2

Guide B


(b) Attach the 6 claws and guide (A) as shown in the illustration.

(c) Install the 2 clips to the cowl top ventilator louver sub-assembly.

5. INSTALL CENTER NO. 2 COWL TOP VENTILATOR LOUVER

(a) Attach the 2 claws and 2 guides to install the center No. 2 cowl top ventilator louver.

6. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH

(a) Operate the wiper and stop the windshield wiper motor at the automatic stop position.

(b) When reusing the front wiper arm and blade assembly RH:

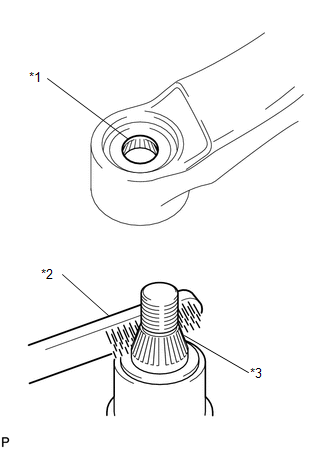

(1) Clean the wiper arm serrations.

Text in Illustration

*1

Wiper Arm Serration

*2

Wire Brush

*3

Wiper Pivot Serration


(c) When reusing the windshield wiper link assembly:

(1) Clean the wiper pivot serrations with a wire brush.

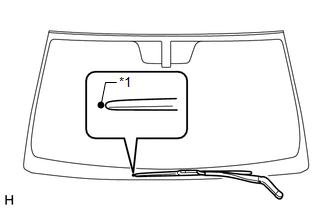

(d) Install the front wiper arm and blade assembly RH to the position shown in the illustration with the nut.

Torque:

25 N·m {255 kgf·cm, 18 ft·lbf}

Text in Illustration

*1

Ceramic Dot

HINT:

  • Hold the wiper arm by hand while tightening the nut.
  • Raise and lower the wiper arm a few times to confirm that it has settled into the specified position.

7. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH

(a) When reusing the front wiper arm and blade assembly LH:

(1) Clean the wiper arm serrations.

Text in Illustration

*1

Wiper Arm Serration

*2

Wire Brush

*3

Wiper Pivot Serration


(b) When reusing the windshield wiper link assembly:

(1) Clean the wiper pivot serrations with a wire brush.

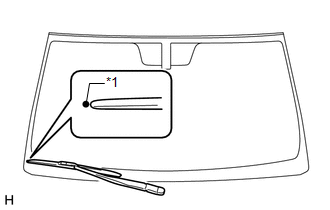

(c) Install the front wiper arm and blade assembly LH to the position shown in the illustration with the nut.

Torque:

25 N·m {255 kgf·cm, 18 ft·lbf}

Text in Illustration

*1

Ceramic Dot

HINT:

  • Hold the wiper arm by hand while tightening the nut.
  • Raise and lower the wiper arm a few times to confirm that it has settled into the specified position.

(d) Operate the front wipers while spraying washer fluid on the windshield glass. Make sure that the front wipers function properly and there is no interference with the vehicle body.

8. INSTALL FRONT WIPER ARM HEAD CAP

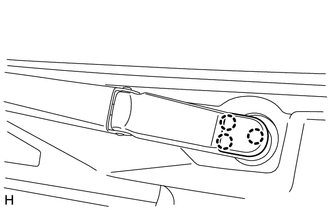

(a) Attach the 3 claws to install the front wiper arm head cap.

HINT:

Use the same procedure described for the LH side.


9. INSTALL FRONT FENDER TO COWL SIDE SEAL LH

(a) Attach the 5 claws to install the front fender to cowl side seal LH.

10. INSTALL FRONT FENDER TO COWL SIDE SEAL RH

HINT:

Use the same procedure described for the LH side.

11. INSTALL FRONT FENDER MAIN SEAL LH

(a) Attach the 4 clips and 2 guides.

12. INSTALL FRONT FENDER MAIN SEAL RH

HINT:

Use the same procedure described for the LH side.

13. INSTALL UPPER RADIATOR SUPPORT SEAL

14. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See page ).
