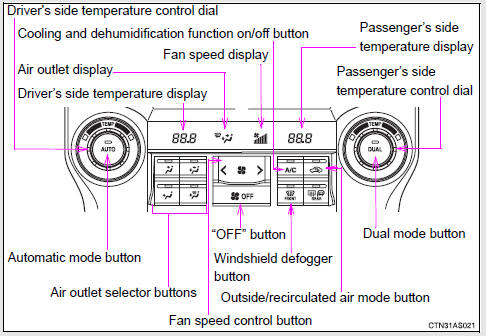

Toyota 4Runner: Automatic air conditioning system

Toyota 4Runner Owners Manual / Interior features / Using the air conditioning system and defogger / Automatic air conditioning system

Air outlets and fan speed are automatically adjusted according to the temperature setting.

Adjusting the position of and opening and closing the air outlets

Front center outlets 1. Direct air flow to the left or right, up or down. 2. Turn the knob to open or close the vent. Front side outlets 1. Direct air flow to the left or right, up or down. 2 ...

Using the automatic air conditioning system

Press . The air conditioning system begins to operate. Air outlets and fan speed are automatically adjusted according to the temperature setting. Turn clockwise to increases the temperature ...
