Toyota 4Runner: Components

COMPONENTS

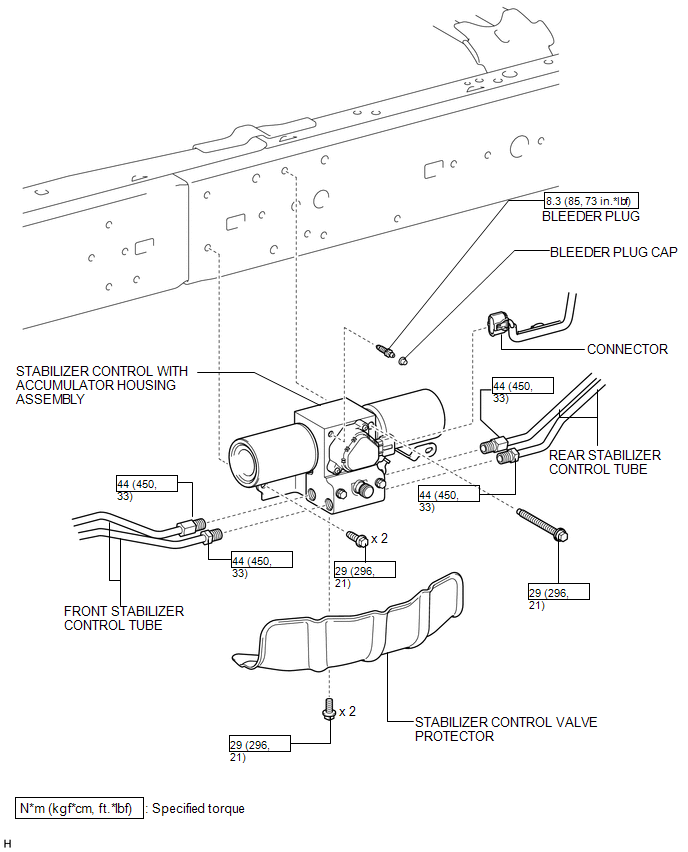

ILLUSTRATION

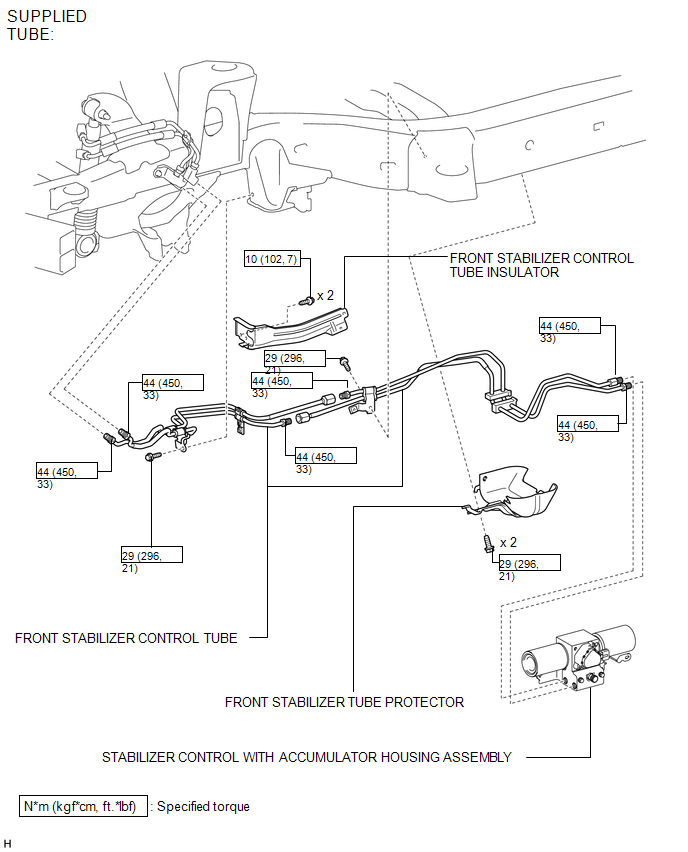

ILLUSTRATION

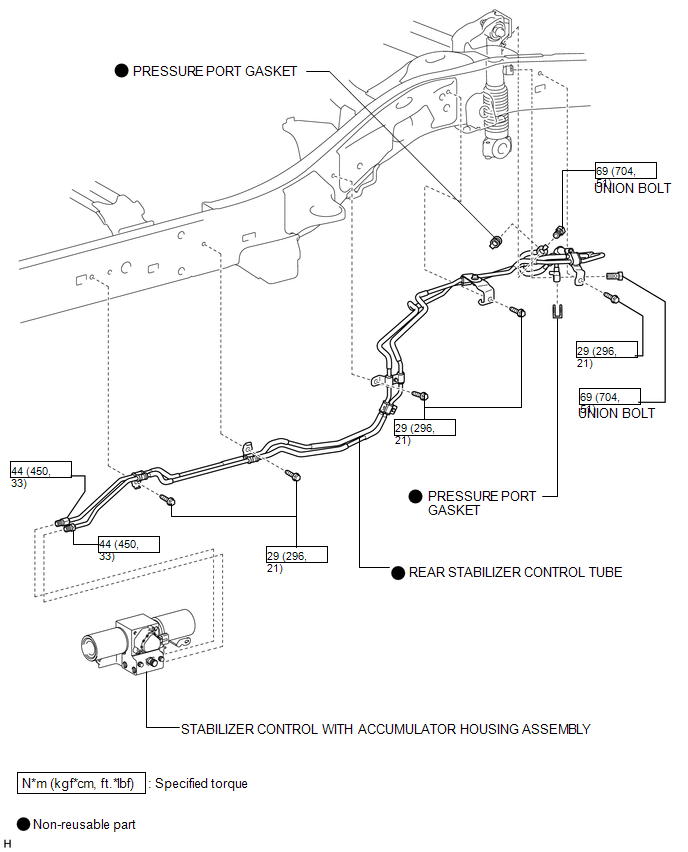

ILLUSTRATION

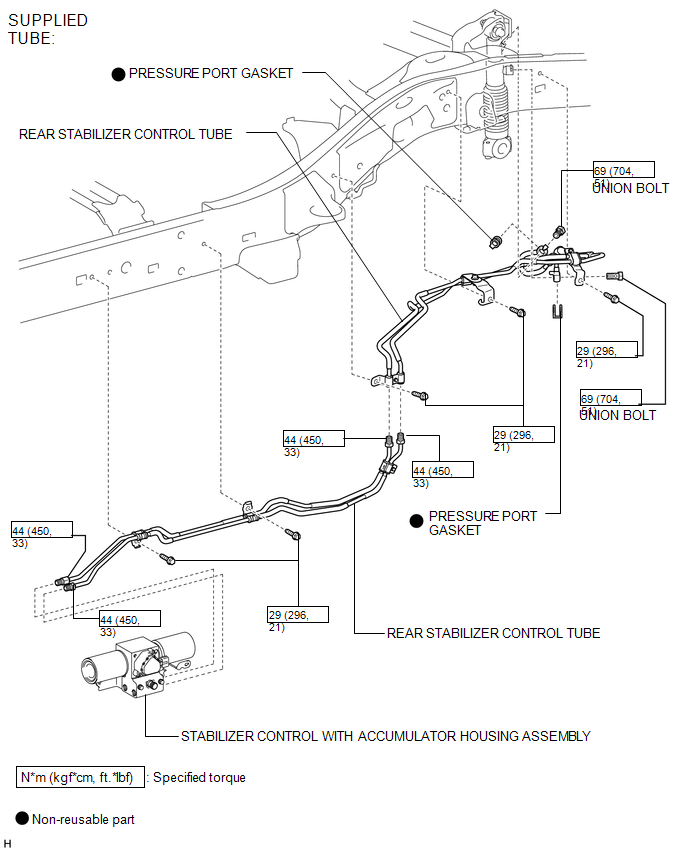

ILLUSTRATION

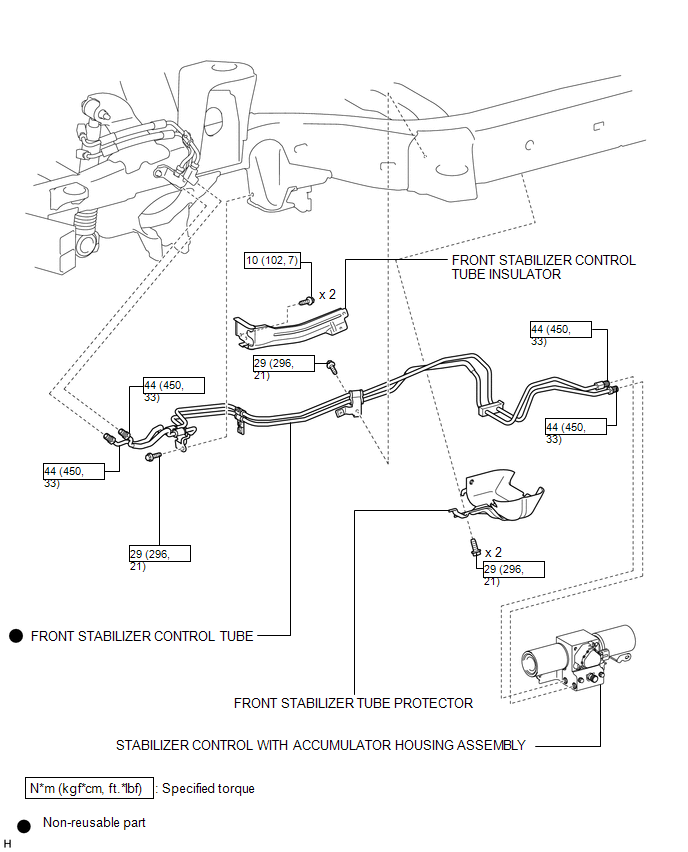

ILLUSTRATION


Stabilizer Control Valve(w/ Kdss)
...

Installation
INSTALLATION PROCEDURE 1. INSTALL STABILIZER CONTROL WITH ACCUMULATOR HOUSING ASSEMBLY (a) Install the stabilizer control with accumulator housing with the 3 bolts. Torque: 29 N·m {296 kgf·cm, ...
