Toyota 4Runner: Components

COMPONENTS

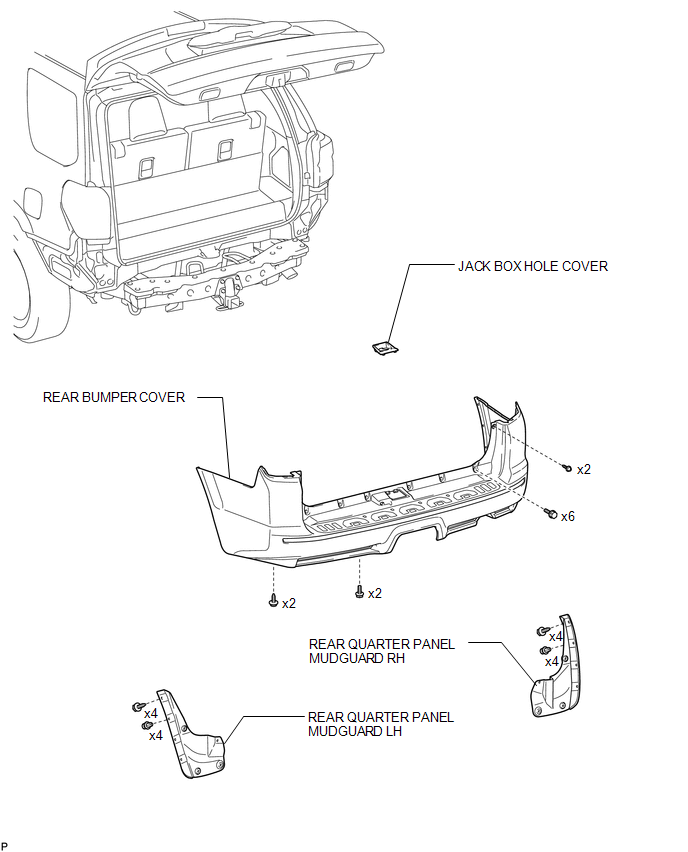

ILLUSTRATION

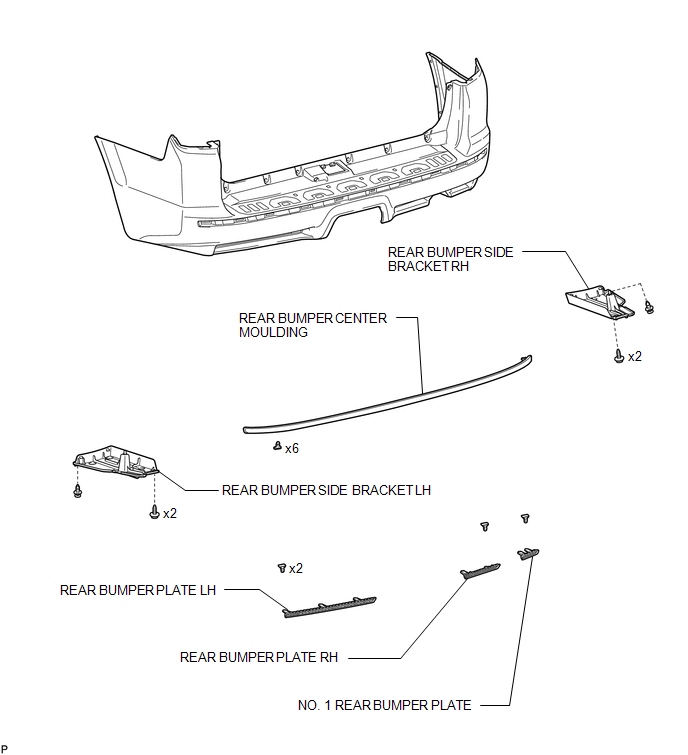

ILLUSTRATION

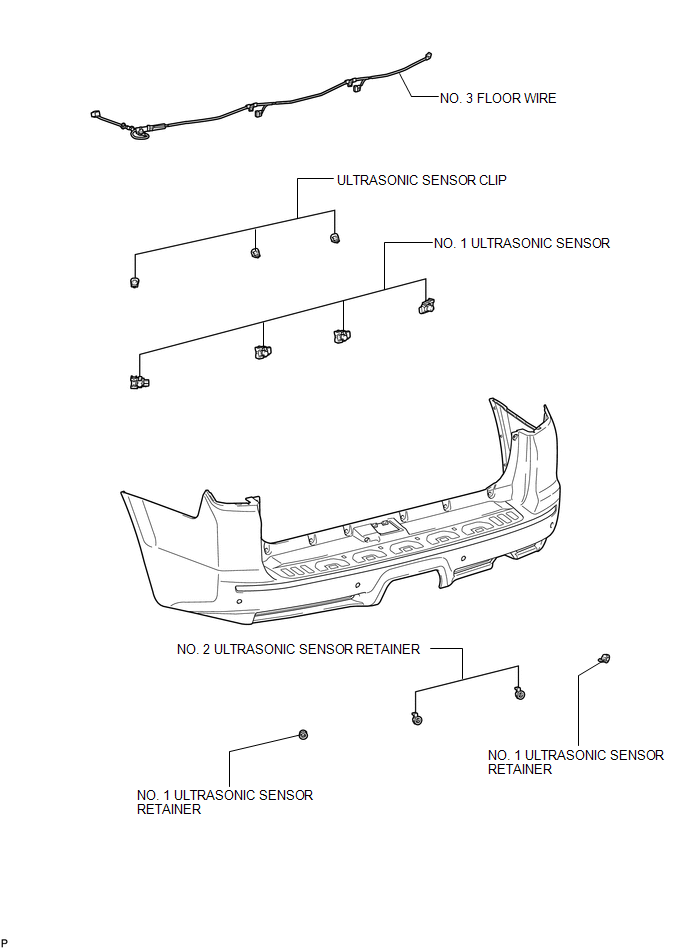

ILLUSTRATION


ILLUSTRATION


Rear Bumper(w/ Intuitive Parking Assist System)
...

Removal
REMOVAL PROCEDURE 1. REMOVE JACK BOX HOLE COVER 2. REMOVE REAR QUARTER PANEL MUDGUARD LH 3. REMOVE REAR QUARTER PANEL MUDGUARD RH HINT: Use the same procedure as for the LH side. 4. REMOV ...
