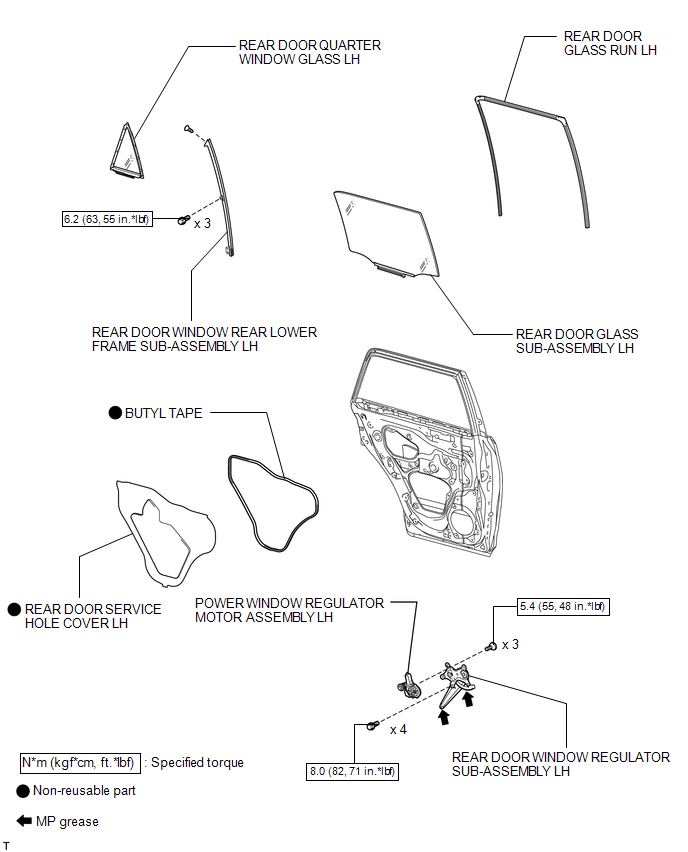

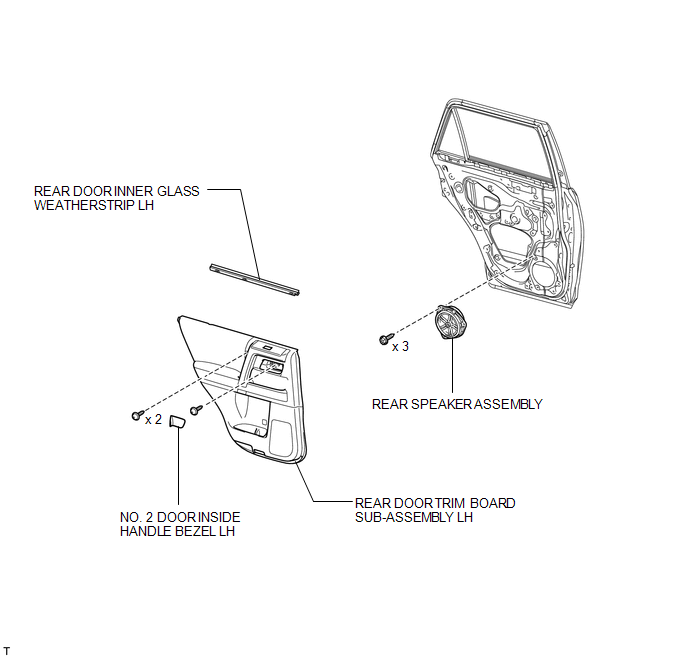

COMPONENTS
ILLUSTRATION
ILLUSTRATION
System Diagram
SYSTEM DIAGRAM
Communication Table
Sender
Receiver
Signal
Line
Certification ECU
Power management control ECU
Engine immobiliser system set/unset signal
Engi ...
Door Side Airbag Sensor RH Initialization Incomplete (B1693/81,B1698/82)
DESCRIPTION
The circuit for the side collision sensor LH or RH (to determine deployment of
the front seat side airbag LH or RH and curtain shield airbag LH or RH) is composed
of the center airbag sensor, rear airbag sensor LH or RH and side airbag sensor ...
