Toyota 4Runner: Components

COMPONENTS

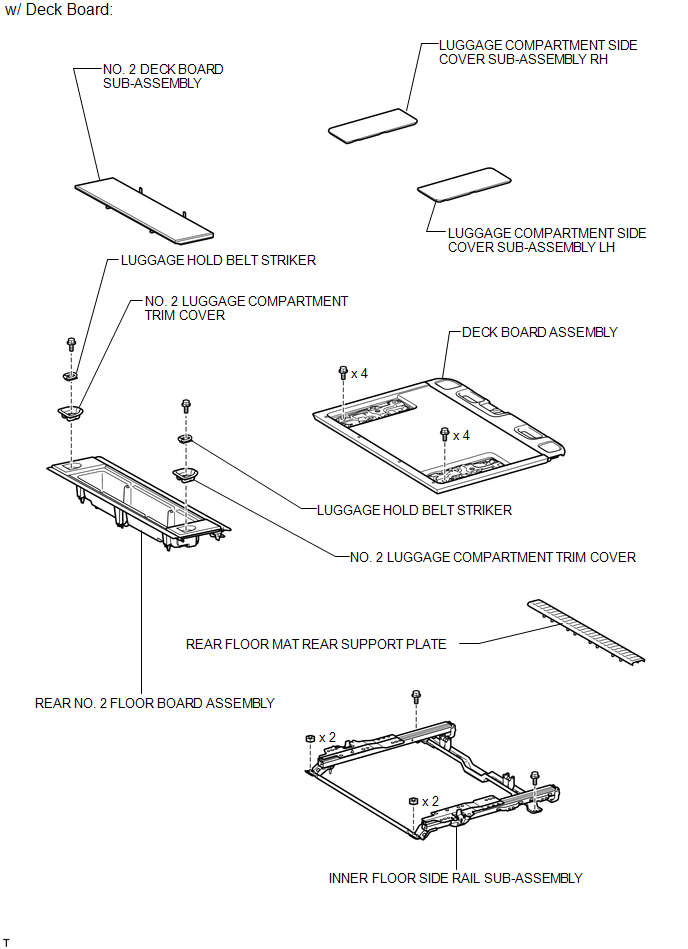

ILLUSTRATION

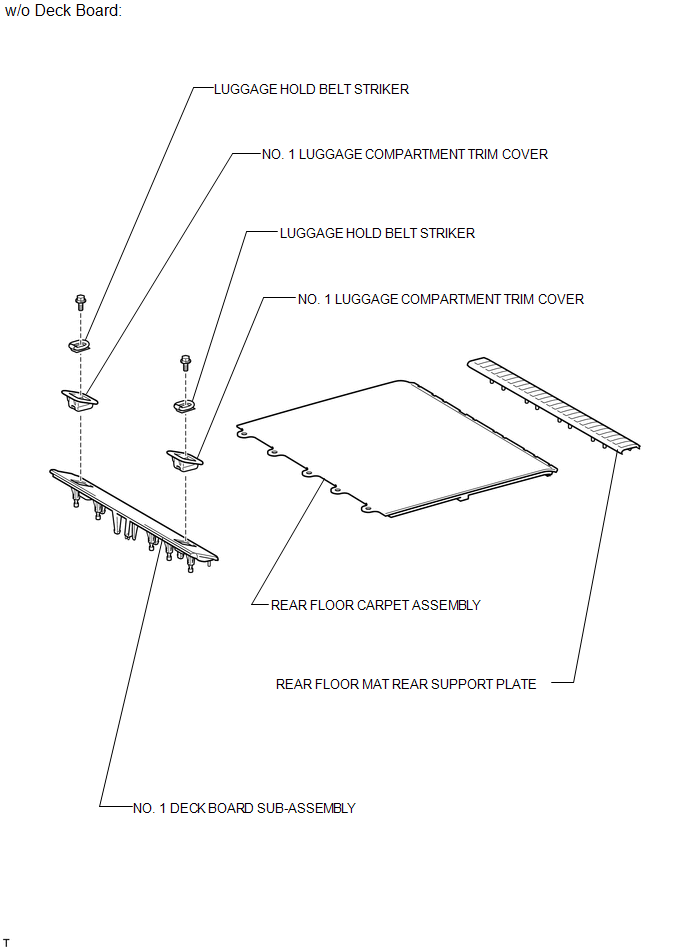

ILLUSTRATION

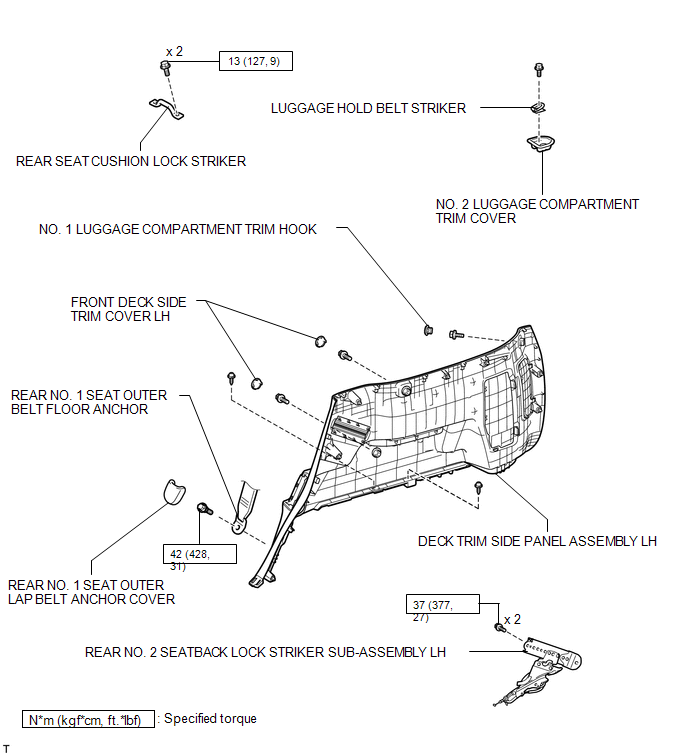

ILLUSTRATION

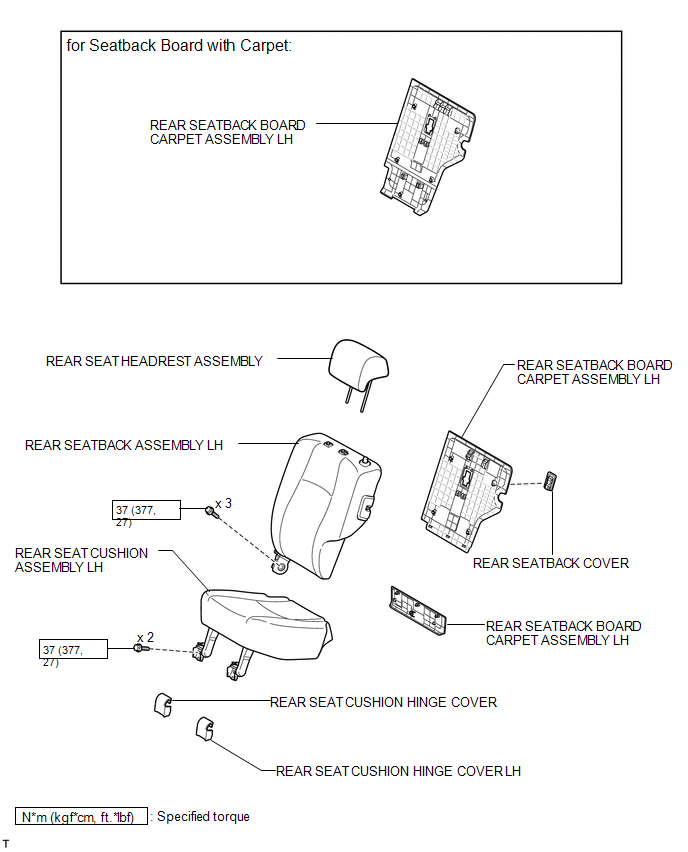

ILLUSTRATION

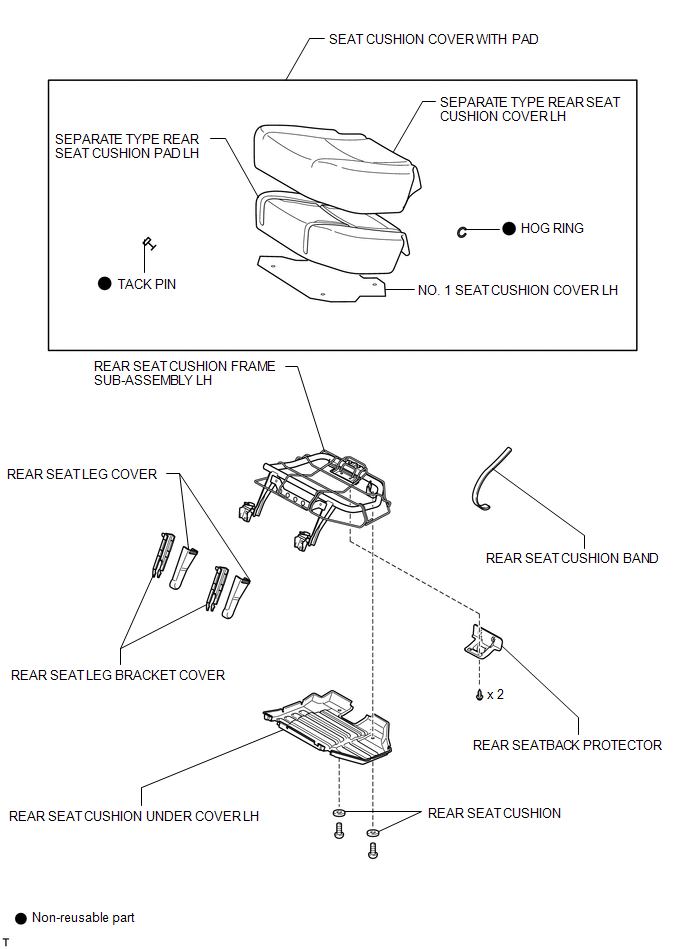

ILLUSTRATION

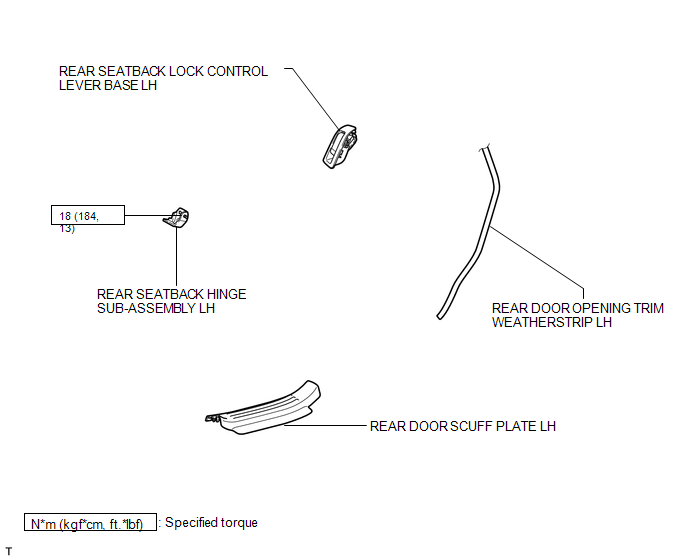

ILLUSTRATION


ILLUSTRATION


Rear No. 1 Seat Assembly(for 60/40 Split Double-folding Seat Type Lh Side)
...

Removal
REMOVAL CAUTION / NOTICE / HINT CAUTION: Wear protective gloves. Sharp areas on the parts may injure your hands. PROCEDURE 1. REMOVE REAR SEAT CUSHION HINGE COVER (a) Using a moulding remover, ...
