Toyota 4Runner: Components

COMPONENTS

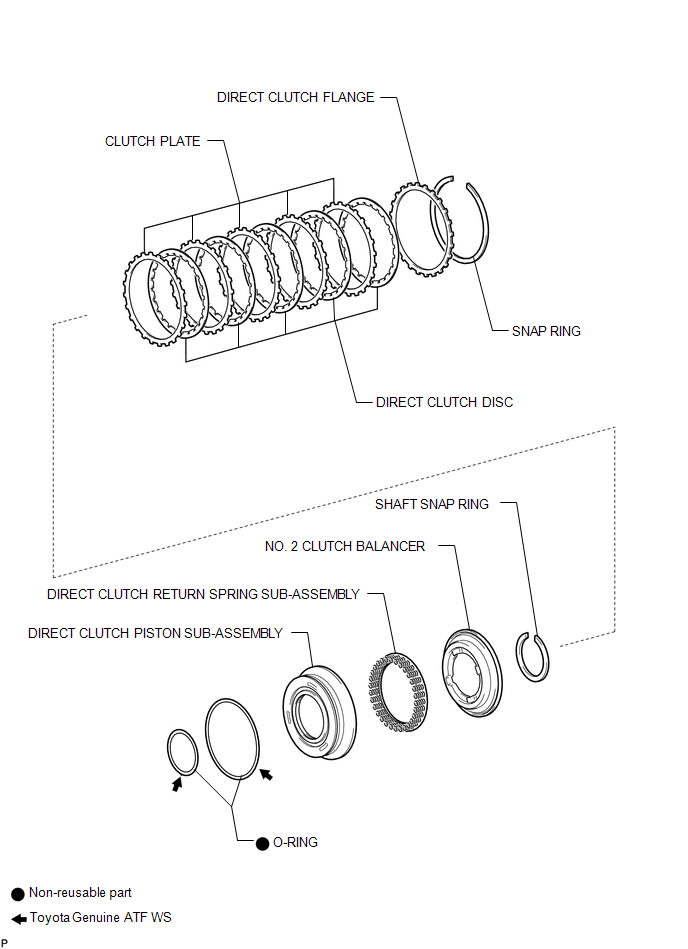

ILLUSTRATION

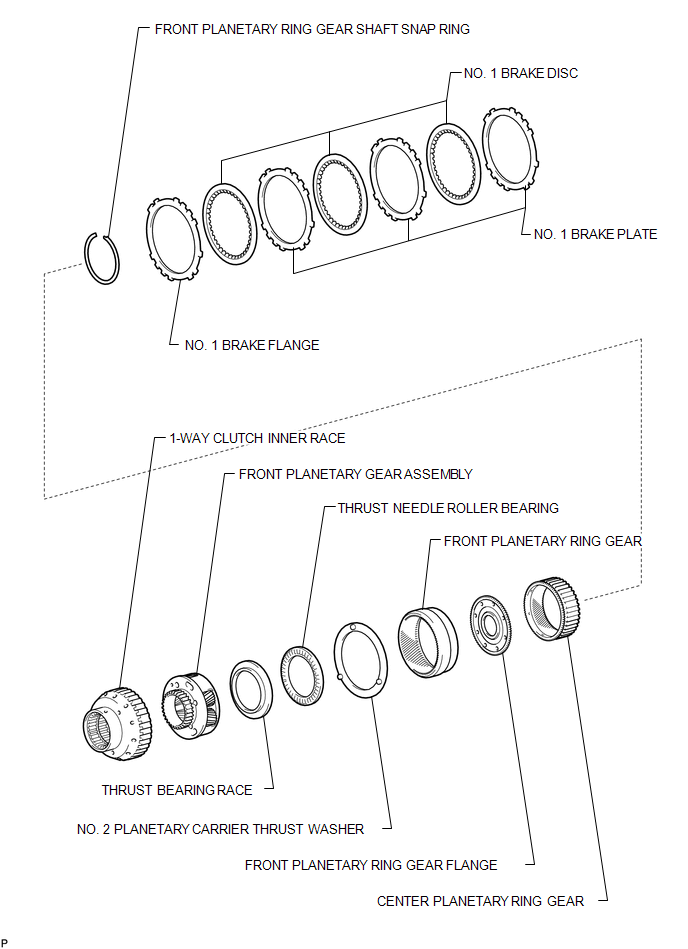

ILLUSTRATION

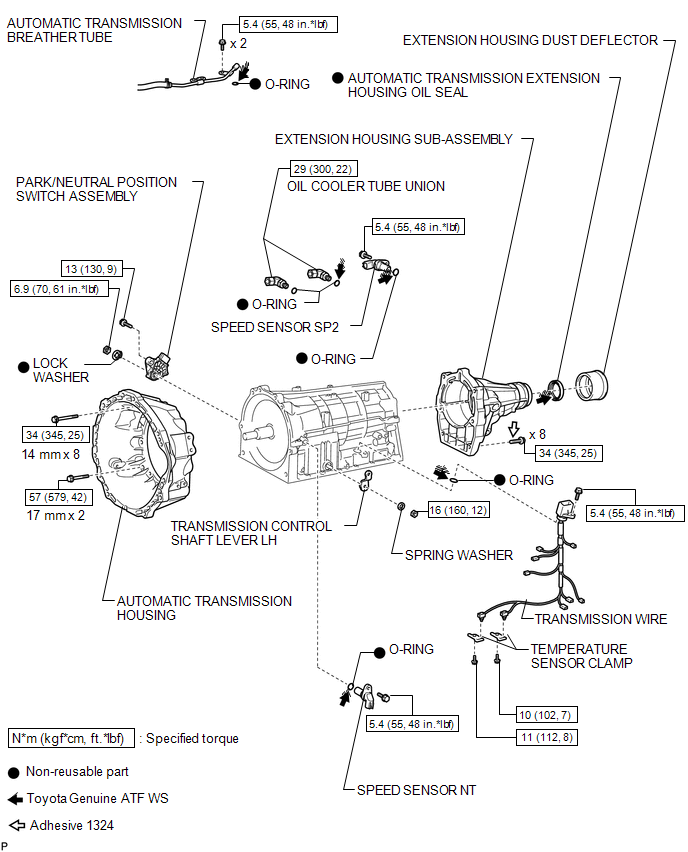

ILLUSTRATION

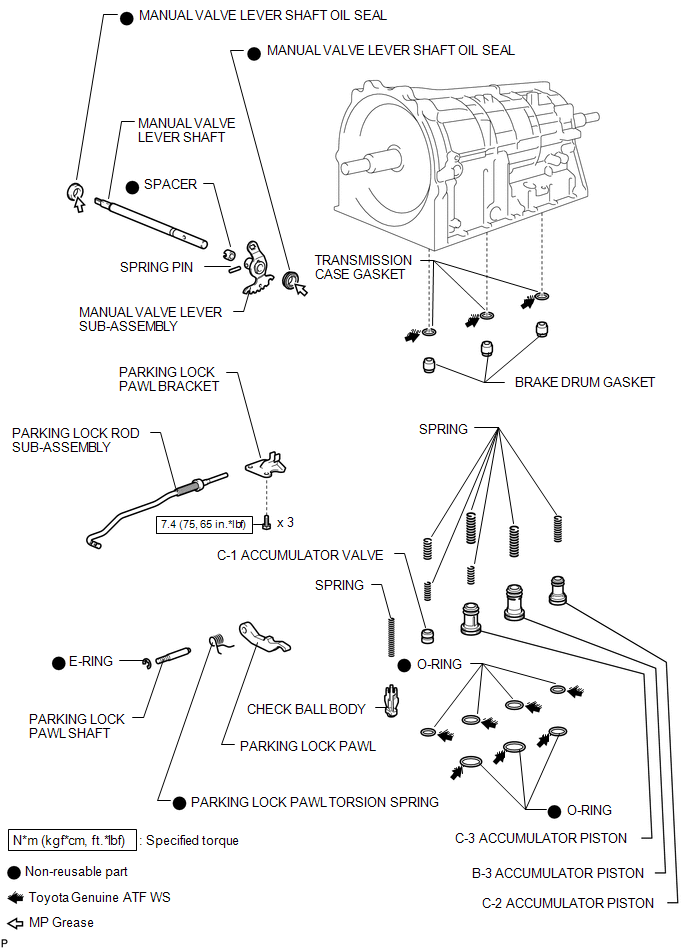

ILLUSTRATION

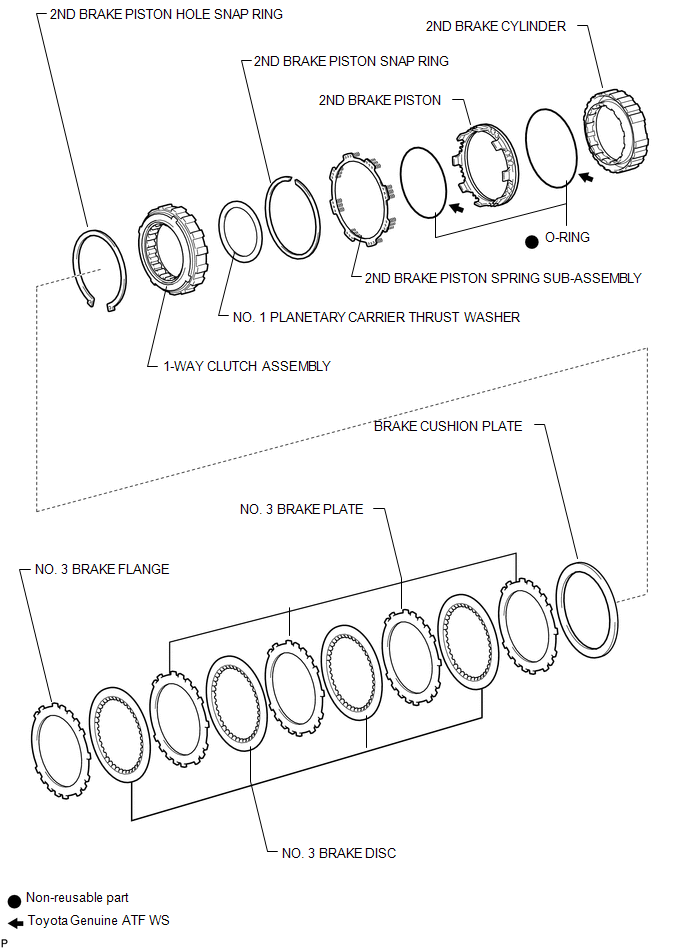

ILLUSTRATION

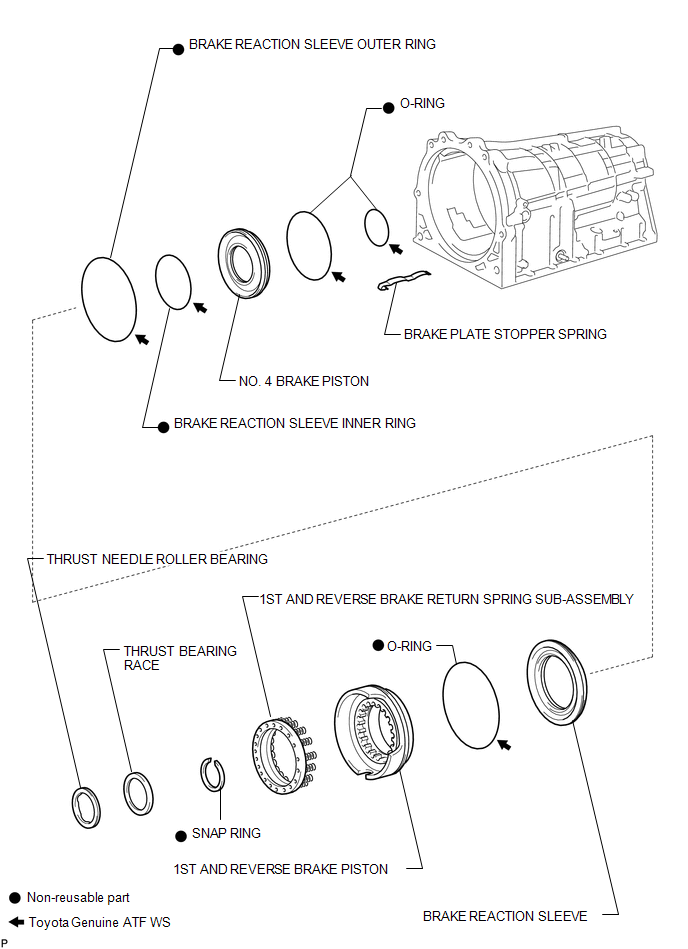

ILLUSTRATION

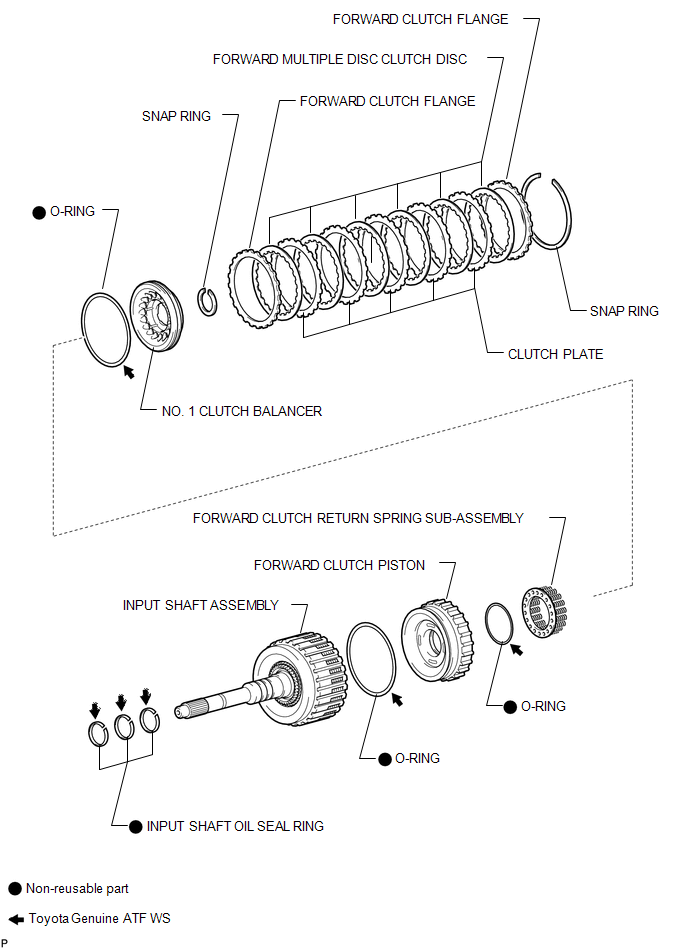

ILLUSTRATION

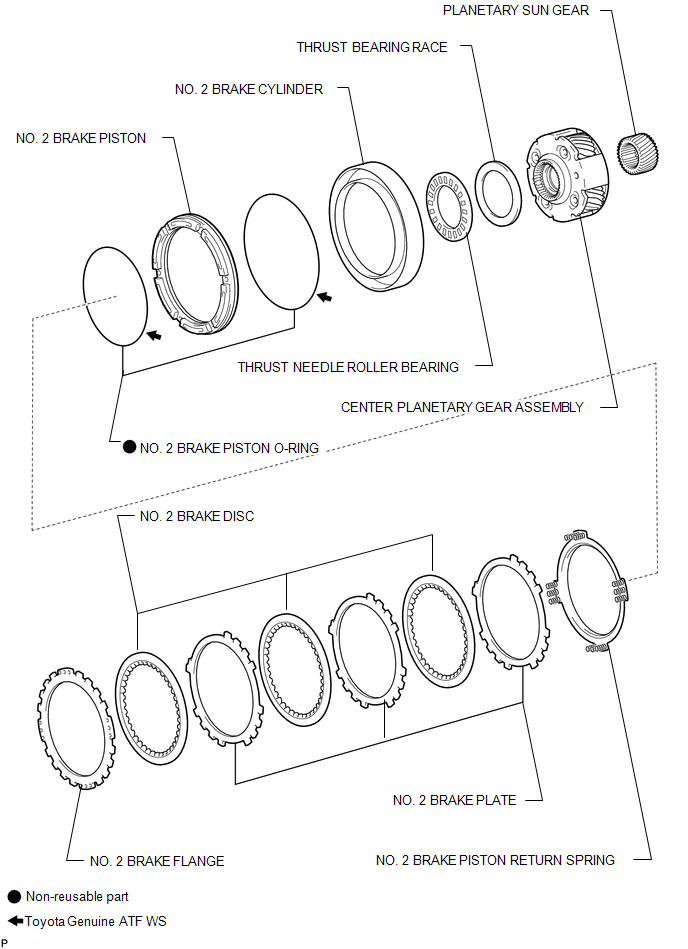

ILLUSTRATION


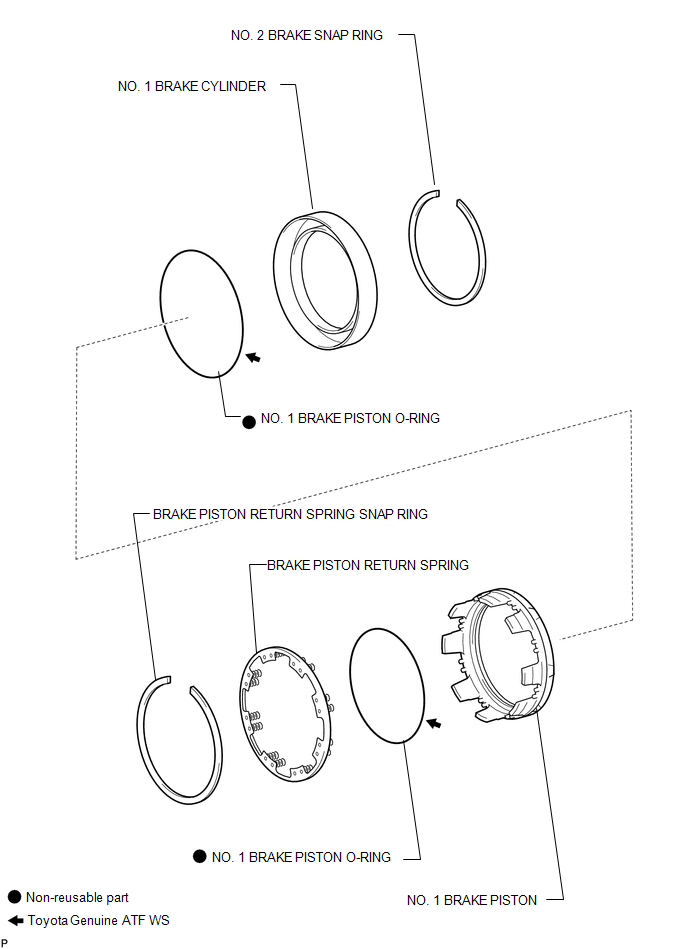

ILLUSTRATION


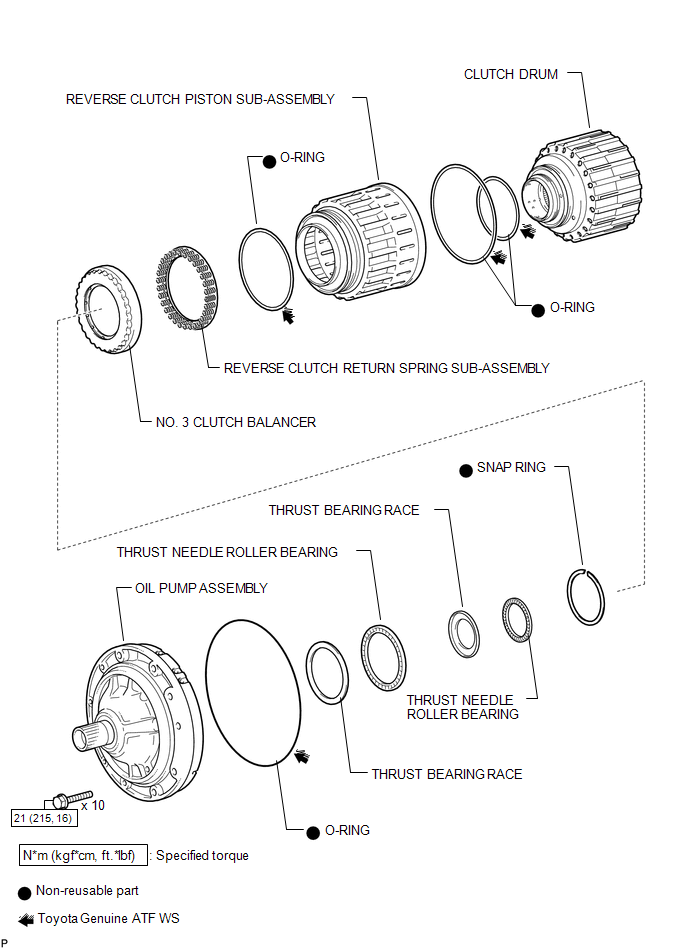

ILLUSTRATION


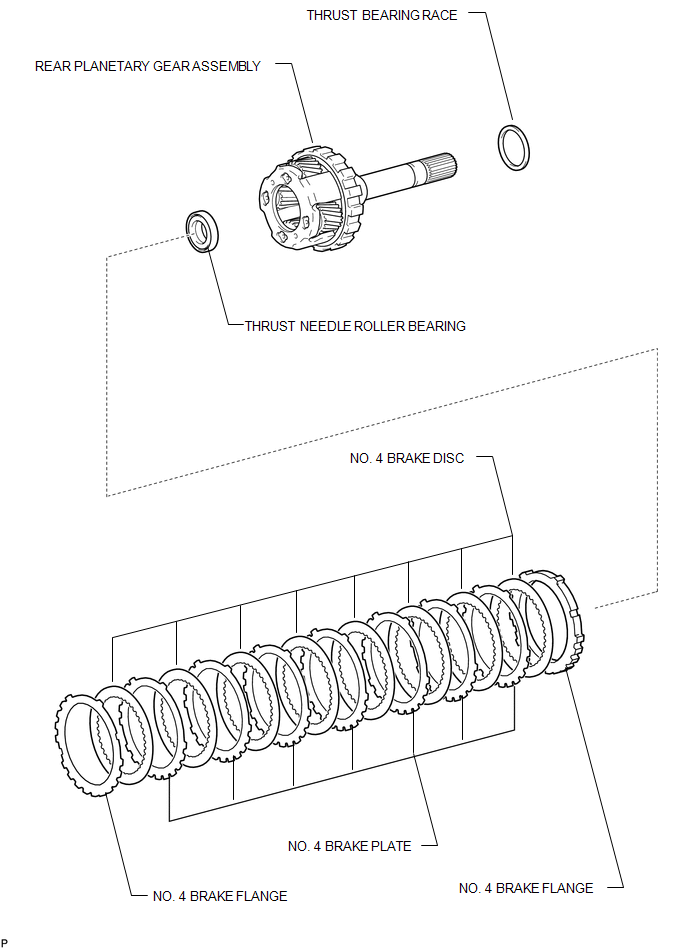

ILLUSTRATION


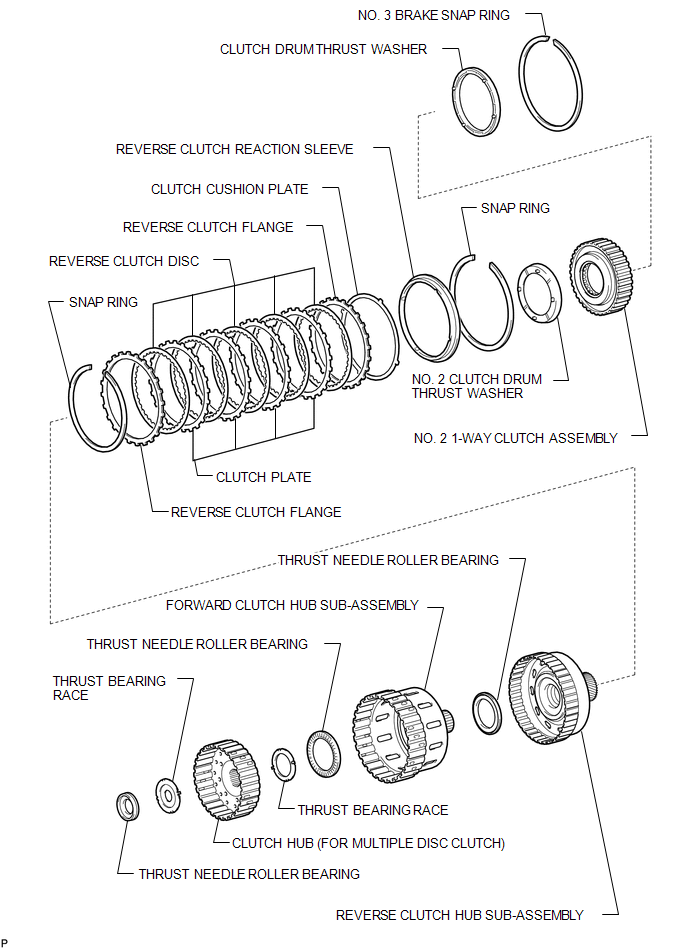

ILLUSTRATION


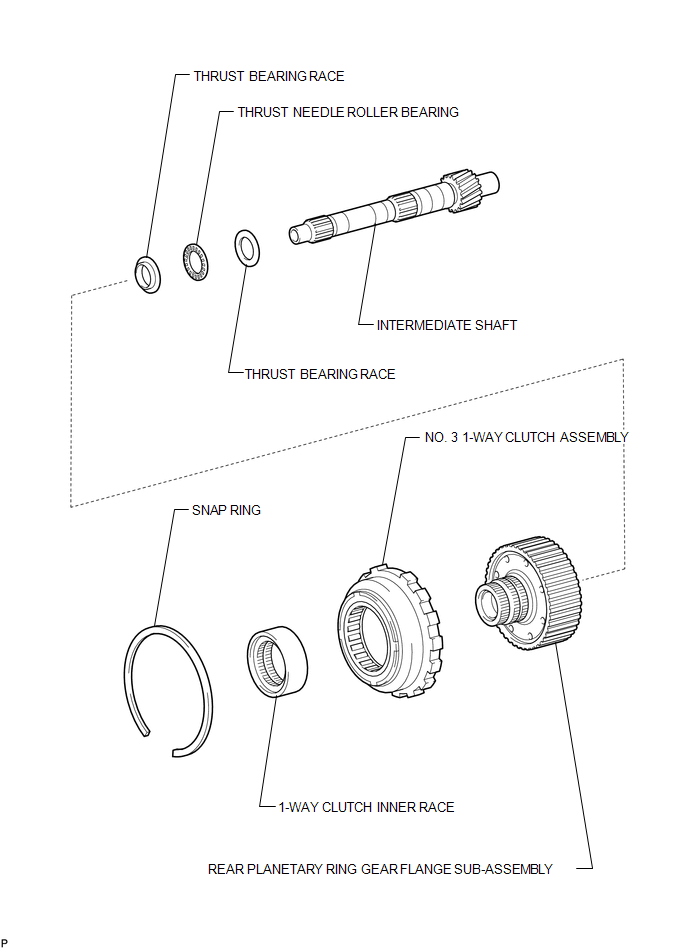

ILLUSTRATION


ILLUSTRATION


Automatic Transmission Unit
...

Disassembly
DISASSEMBLY PROCEDURE 1. REMOVE TRANSMISSION CONTROL SHAFT LEVER LH (a) Remove the nut, spring washer and control shaft lever LH. 2. REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY (a) Using a s ...
