Toyota 4Runner: Components

COMPONENTS

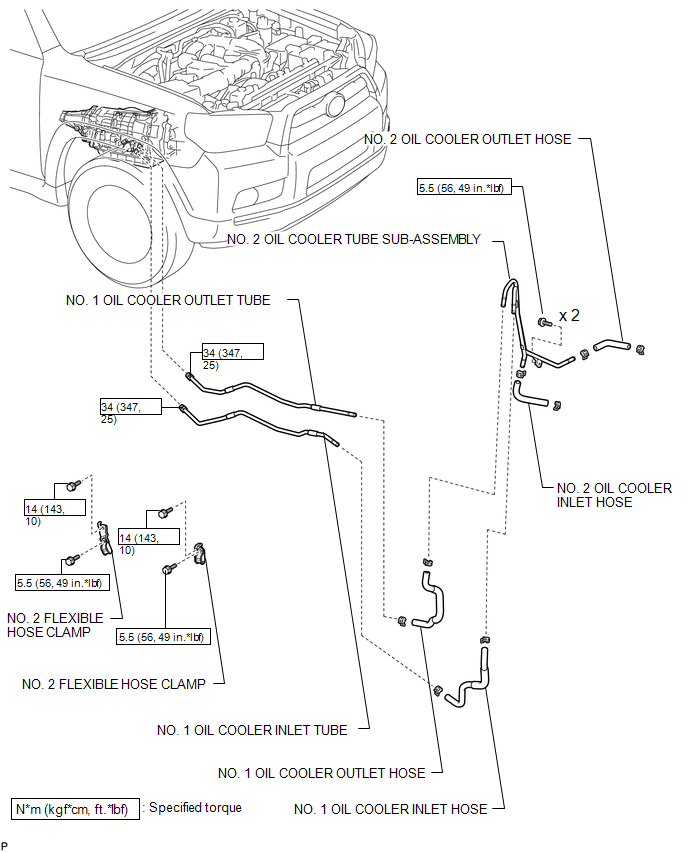

ILLUSTRATION


ILLUSTRATION


Oil Cooler
...

Installation
INSTALLATION PROCEDURE 1. INSTALL NO. 2 OIL COOLER TUBE SUB-ASSEMBLY (a) Temporarily install the oil cooler tube to the fan shroud with bolt A. Install bolt B and tighten it to the s ...
