Toyota 4Runner: Components

COMPONENTS

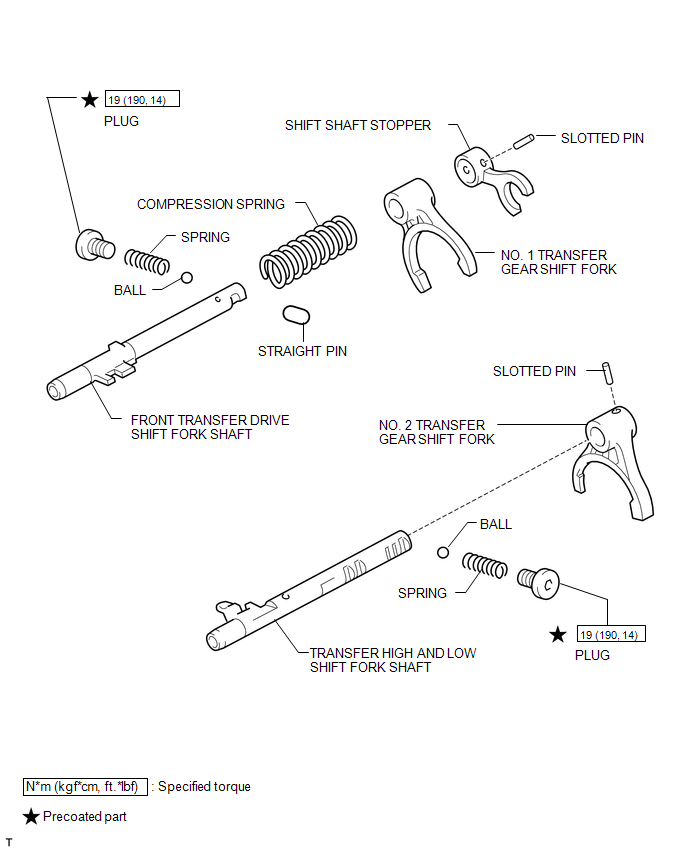

ILLUSTRATION

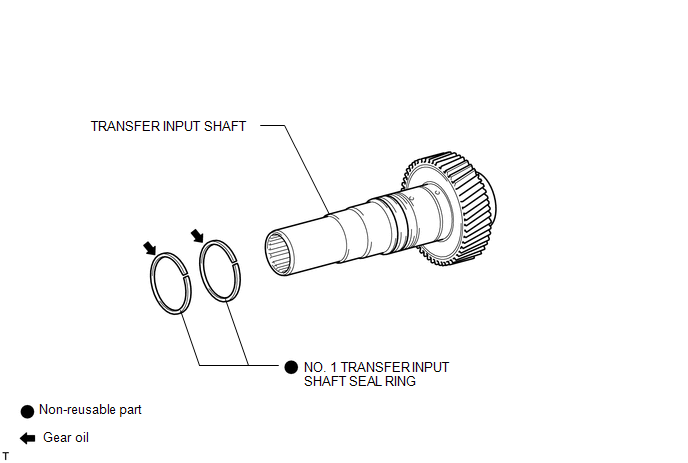

ILLUSTRATION

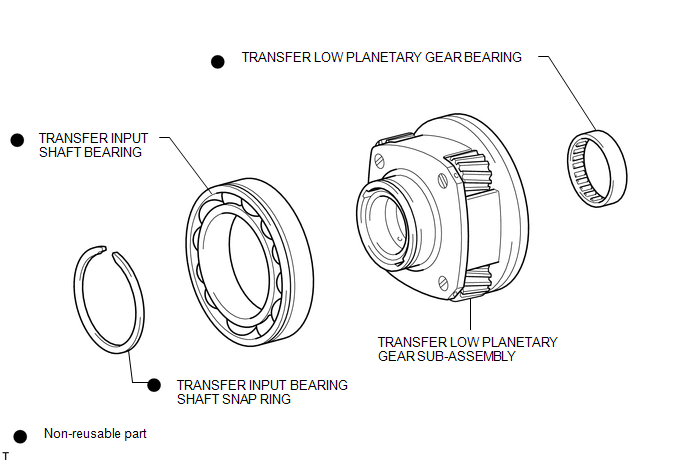

ILLUSTRATION

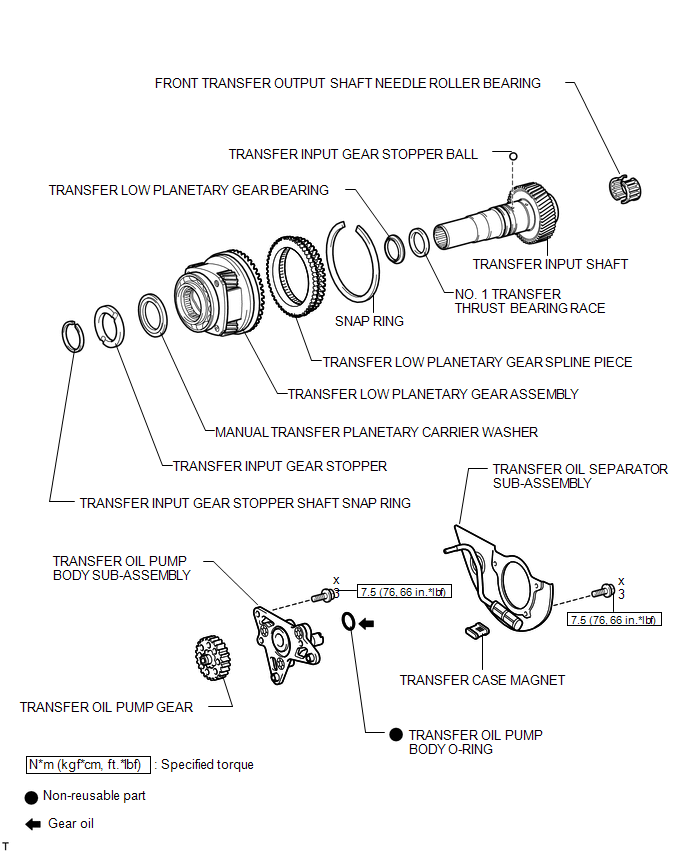

ILLUSTRATION

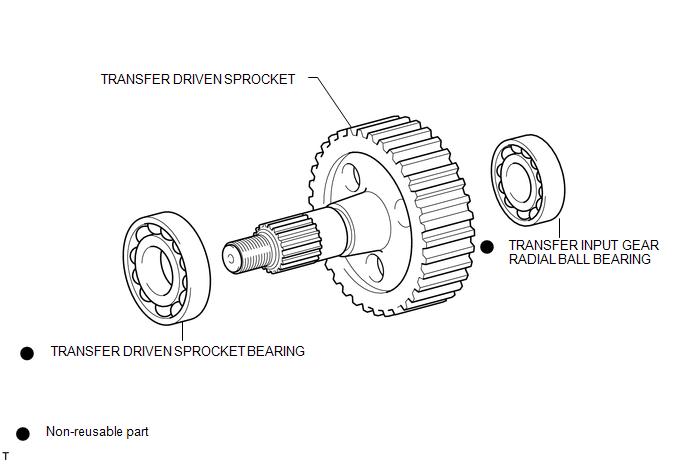

ILLUSTRATION

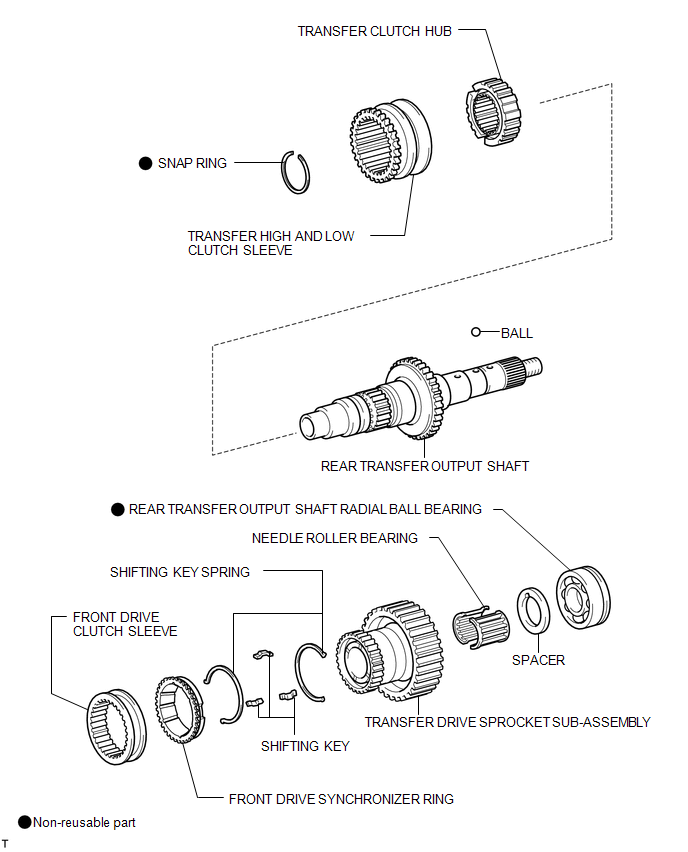

ILLUSTRATION

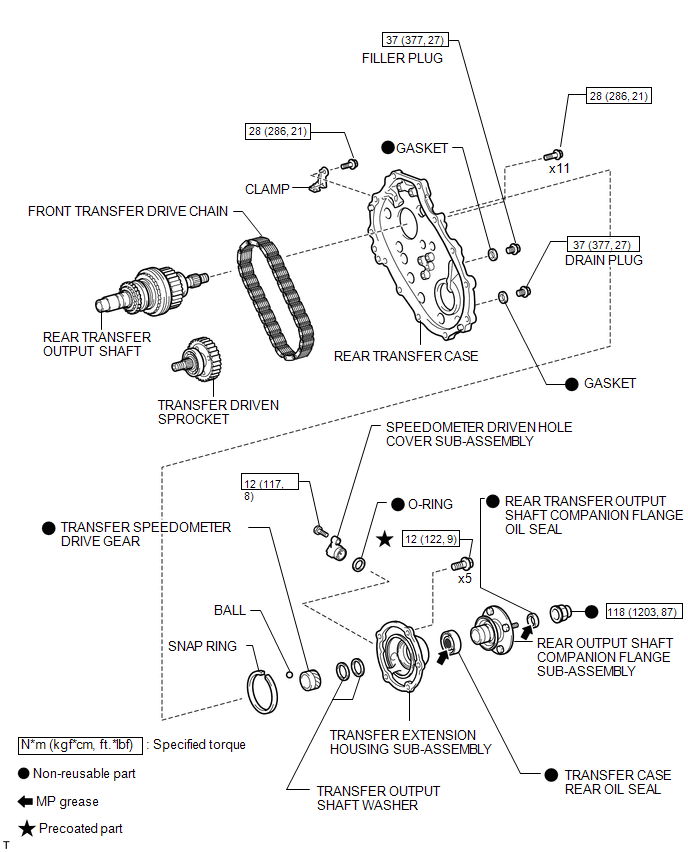

ILLUSTRATION

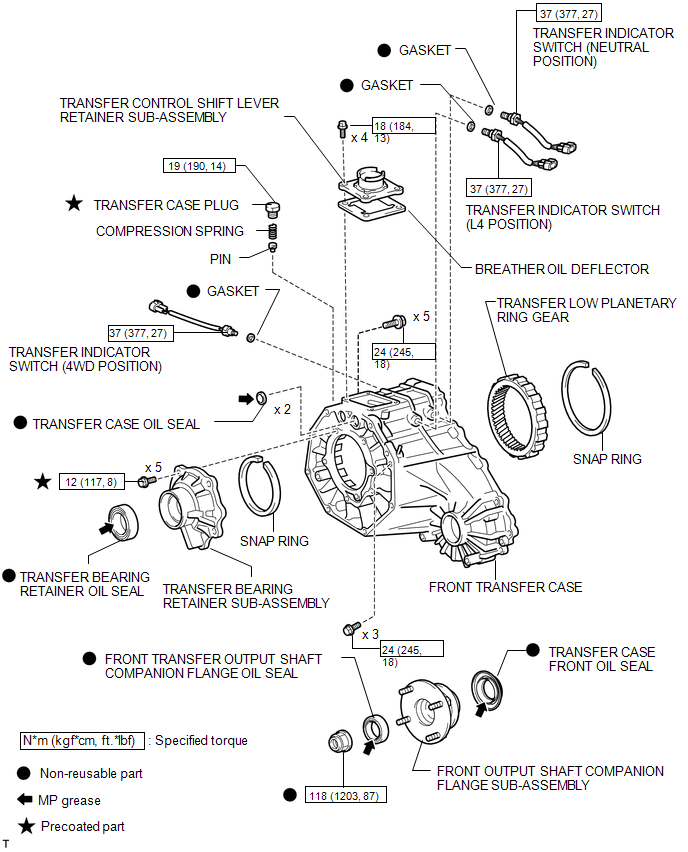

ILLUSTRATION


Transfer Assembly
...

Removal
REMOVAL PROCEDURE 1. DRAIN TRANSFER OIL 2. REMOVE AUTOMATIC TRANSMISSION ASSEMBLY (a) Remove the automatic transmission (See page ). 3. REMOVE TRANSFER ASSEMBLY (a) Remove the 8 bolts. (b) ...

Other materials about Toyota 4Runner:

Reassembly
REASSEMBLY PROCEDURE 1. INSTALL FRONT DIFFERENTIAL SIDE GEAR SHAFT BEARING RH (a) Using SST and a press, press in the shaft bearing. SST: 09223-00010 (b) Using a snap ring expander, install the snap ring. HINT: Install the snap ring securely. 2. INST ...

Installation
INSTALLATION CAUTION / NOTICE / HINT CAUTION: Wear protective gloves. Sharp areas on the parts may injure your hands. HINT: Use the same procedure for the RH and LH sides. The procedure listed below is for the LH side. PROCEDURE 1. INS ...
