Toyota 4Runner: Components

COMPONENTS

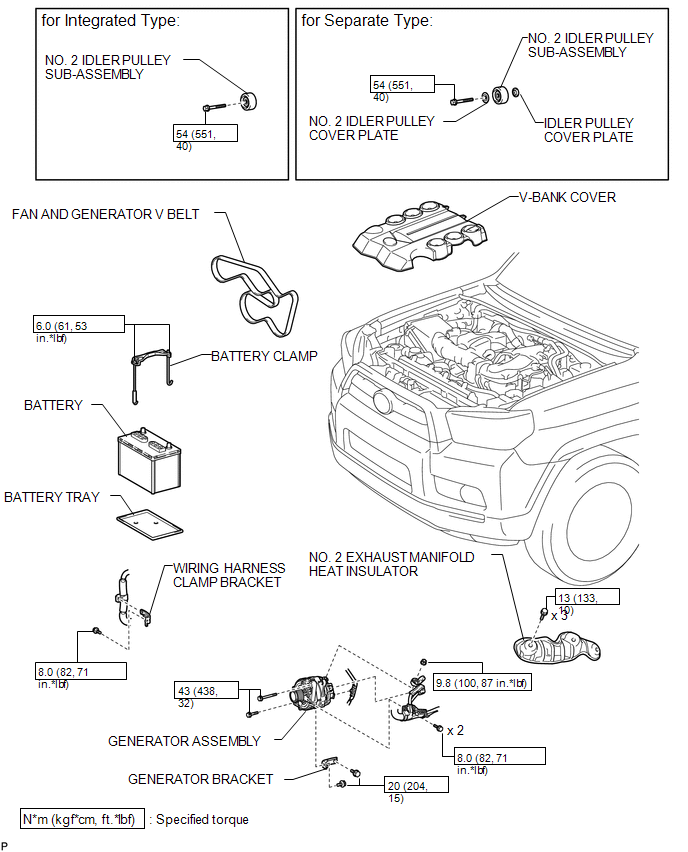

ILLUSTRATION


ILLUSTRATION


Generator
...

Removal
REMOVAL PROCEDURE 1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL NOTICE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See page ). 2. DI ...
