PROCEDURE
1. |
CHECK CONDITION |

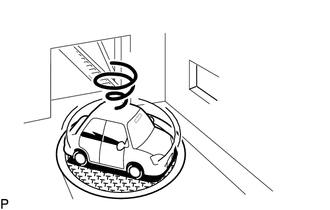

(a) Check with the customer if the vehicle has been turned by a turntable. OK: Vehicle has not been turned by a turntable. HINT: If the vehicle is turned on a turntable with the ignition switch ON, the system may store the angular velocity. As a result, the vehicle position cursor may deviate. In this case, the vehicle position cursor will return to normal by turning the ignition switch off and back to ON again with the vehicle completely stopped. |
|
OK | ![]() |
PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE |
NG | ![]() |
TURN IGNITION SWITCH TO ON WHEN VEHICLE IS COMPLETELY STOPPED |
Radio Receiver
Components
COMPONENTS
ILLUSTRATION
ILLUSTRATION
Removal
REMOVAL
PROCEDURE
1. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH
2. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH
3. REMOVE HEATER CONTROL ASSEMBLY
4. REMOVE RAD ...
Green And Red Indicators Do Not Come On When Ig-on
DESCRIPTION
If the red and green indicators fail to illuminate after the ignition switch
is turned to ON, the vehicle does not recognize the DCM (Telematics Transceiver).
The DCM (Telematics Transceiver) connectors may have been disconnected or the DCM
...
