CUSTOMIZE PARAMETERS

1. CUSTOMIZING FUNCTION WITH THE TECHSTREAM

HINT:

The following items can be customized.

NOTICE:

When the customer requests a change in a function, first make sure that the function can be customized.
Record the current settings before customizing.

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(d) Enter the following menus: Customize Setting.

(e) Select the setting by referring to the table below.

Light Control

Display	Default	Content	Setting
Disp Ex OFF Sen	NORMAL	Changes brightness when lowering lights such as the combination meter indicator light, A/C indicator light, and clock light.*1	LIGHT2, LIGHT1, NORMAL, DARK1 or DARK2
Disp Ex ON Sen	NORMAL	canceling lowering lights such as the combination meter indicator light, A/C indicator light, and clock light.*2	LIGHT2, LIGHT1, NORMAL, DARK1 or DARK2
Light Auto OFF Delay	30s	Function to continue illuminating the headlights for a certain period of time after closing all the doors with the ignition switch turned from ON to off under the condition that the headlight dimmer switch is at head or AUTO with the headlight on.	OFF, 30s, 60s or 90s
Sensitivity	Normal	A function to adjust the ambient light sensitivity of the automatic light control system.*3	Light2, Light1, Normal, Dark1 or Dark2
DRL Function	ON	A function that enables or disables the DRL.	ON or OFF

HINT:

The sensitivity adjustment may be difficult to confirm. Check by driving the customer's vehicle.

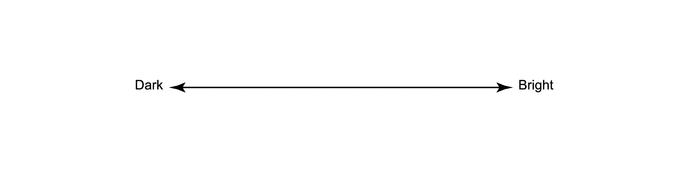

Brightness of lowering the lights
Setting	DARK2	DARK1	NORMAL	LIGHT1	LIGHT2

Brightness when canceling the lowering of the lights
Setting	DARK2	DARK1	NORMAL	LIGHT1	LIGHT2

Lighting brightness
Setting	Dark2	Dark1	Normal	Light1	Light2
