Toyota 4Runner Service Manual / Vehicle Exterior / Lighting (ext) / Fog Light Assembly / Disassembly

DISASSEMBLY

CAUTION / NOTICE / HINT

HINT:

Use the same procedure for both the RH and LH sides.
The procedure listed below is for the LH side.

PROCEDURE

1. REMOVE FOG LIGHT BULB

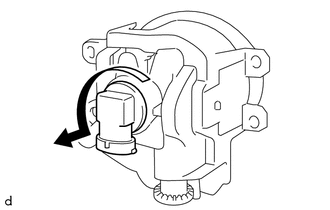

(a) Turn the bulb in the direction indicated by the arrow and pull to remove it.

Removal
