Toyota 4Runner: Disposal

DISPOSAL

PROCEDURE

1. DISPOSE OF FRONT SHOCK ABSORBER ASSEMBLY LH (w/ REAS)

HINT:

Use the same procedure for the other front shock absorber.

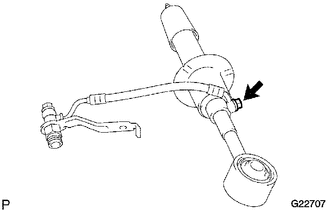

(a) Before disposal, loosen the nut slowly to bleed out the oil and to lower the pressure inside the absorber.

NOTICE:

Never loosen the nut of the eye union except at the time of disposal.


2. DISPOSE OF FRONT SHOCK ABSORBER ASSEMBLY LH (w/o REAS)

HINT:

Use the same procedure for the other front shock absorber.

(a) Fully extend the shock absorber piston rod and fix the shock absorber in place at an angle in a vise or similar tool.

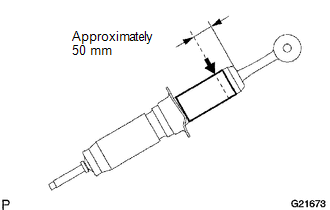

(b) Using a drill or similar tool, slowly make a hole approximately 50 mm (1.97 in.) from the top end of the shock absorber and discharge the gas inside of it.

CAUTION:

  • The gas is colorless, odorless and harmless.
  • Since the discharged gas may cause chips to fly off, cover the drill with a cloth when making a hole.
