DISPOSAL
CAUTION / NOTICE / HINT
HINT:
The tire pressure warning valve and transmitter is powered by a lithium battery. When disposing of the tire pressure warning valve and transmitter, remove the battery and dispose of it properly.
PROCEDURE
1. DISPOSE OF TIRE PRESSURE WARNING VALVE AND TRANSMITTER

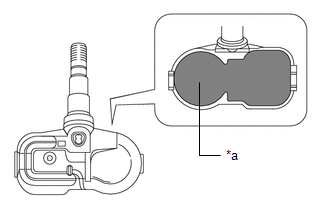

(a) Remove the urethane that protects the lithium battery and circuit board. Text in Illustration
|
|

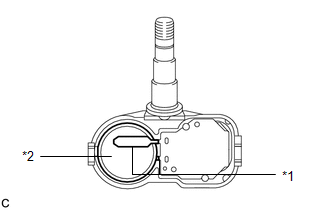

(b) Cut the 2 terminals to remove the lithium battery from the tire pressure warning valve and transmitter. Text in Illustration
|
|
Disassembly
DISASSEMBLY
PROCEDURE
1. REMOVE BRAKE FLUID INFORMATION LABEL
2. REMOVE BRAKE MASTER CYLINDER RESERVOIR FILLER CAP ASSEMBLY
(a) Remove the brake master cylinder reservoir filler cap assembly from the brake
master cylinder reservoir assembly.
3. REMOVE B ...
Sound Signal Circuit between Navigation Receiver Assembly and Stereo Component
Amplifier
DESCRIPTION
The navigation receiver assembly sends a sound signal to the stereo component
amplifier assembly via the sound signal circuit.
The sound signal that has been sent is amplified by the stereo component amplifier
assembly, and then is sent to th ...
