Toyota 4Runner: Electrical Key Oscillator(for Outside Luggage Compartment)

Toyota 4Runner Service Manual / Vehicle Interior / Theft Deterrent / Keyless Entry / Electrical Key Oscillator(for Outside Luggage Compartment)

Components

COMPONENTS

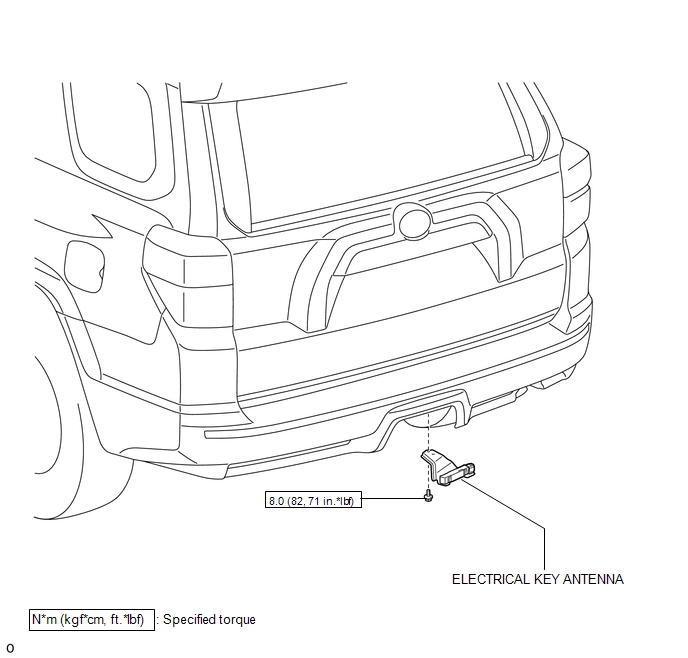

ILLUSTRATION


Installation

INSTALLATION

PROCEDURE

1. INSTALL ELECTRICAL KEY ANTENNA

(a) Install the electrical key antenna with the bolt.

Torque:

8.0 N·m {82 kgf·cm, 71 in·lbf}


(b) Connect the connector.

Removal

REMOVAL

PROCEDURE

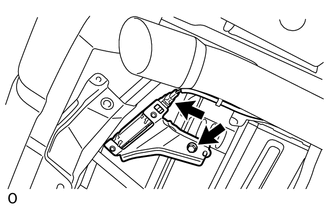

1. REMOVE ELECTRICAL KEY ANTENNA

(a) Disconnect the connector.


(b) Remove the bolt and electrical key antenna.

Removal
REMOVAL PROCEDURE 1. REMOVE REAR NO. 2 SEAT ASSEMBLY (a) Remove the rear No. 2 seat assembly (See page ). 2. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM COVER (w/o Deck Board) 3. REMOVE NO. 1 DECK ...
