Toyota 4Runner Service Manual / Vehicle Interior / Theft Deterrent / Keyless Entry / Electrical Key Oscillator(for Luggage Compartment) / Removal

REMOVAL

PROCEDURE

1. REMOVE REAR NO. 2 SEAT ASSEMBLY

(a) Remove the rear No. 2 seat assembly (See page ).

2. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM COVER (w/o Deck Board)

3. REMOVE NO. 1 DECK BOARD SUB-ASSEMBLY (w/o Deck Board)

4. REMOVE NO. 2 LUGGAGE COMPARTMENT TRIM COVER (w/ Deck Board, w/o Rear No. 2 Seat)

5. REMOVE NO. 2 DECK BOARD SUB-ASSEMBLY (w/o Deck Board)

6. REMOVE REAR NO. 2 FLOOR BOARD ASSEMBLY (w/ Deck Board)

7. REMOVE LUGGAGE COMPARTMENT SIDE COVER SUB-ASSEMBLY LH (w/ Deck Board)

8. REMOVE LUGGAGE COMPARTMENT SIDE COVER SUB-ASSEMBLY RH (w/ Deck Board)

9. REMOVE DECK BOARD ASSEMBLY (w/ Deck Board)

10. REMOVE INNER FLOOR SIDE RAIL SUB-ASSEMBLY (w/ Deck Board)

11. REMOVE REAR FLOOR MAT REAR SUPPORT PLATE

12. REMOVE REAR FLOOR CARPET ASSEMBLY (w/ Deck Board)

(a) Detach the 4 claws and remove the rear floor carpet.

13. REMOVE REAR FLOOR CARPET ASSEMBLY (w/o Deck Board)

14. REMOVE REAR FLOOR PAD (w/o Deck Board)

(a) Remove the rear floor pad.

15. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM COVER

16. REMOVE INDOOR NO. 2 ELECTRICAL KEY ANTENNA ASSEMBLY

(a) Disconnect the connector.

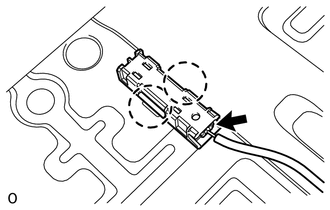

(b) Detach the 2 claws and remove the indoor No. 2 electrical key antenna.

Installation

INSTALLATION PROCEDURE 1. INSTALL INDOOR NO. 2 ELECTRICAL KEY ANTENNA ASSEMBLY (a) Attach the 2 claws to install the indoor No. 2 electrical key antenna. ...

Electrical Key Oscillator(for Outside Luggage Compartment)

Components COMPONENTS ILLUSTRATION Installation INSTALLATION PROCEDURE 1. INSTALL ELECTRICAL KEY ANTENNA (a) Install the electrical key antenna with the bolt. Torque: 8. ...
