Toyota 4Runner Service Manual / Brake / Brake System (other) / Hydraulic Brake Booster / Inspection

INSPECTION

PROCEDURE

1. INSPECT BRAKE BOOSTER PUMP ASSEMBLY

(a) Apply battery voltage to the brake booster pump cables, and check the operation of the pump motor.

OK::

Measurement Condition	Specified Condition
Battery positive (+) voltage → Red cable terminal	Pump motor operates
Battery negative (-) voltage → Black cable terminal	Pump motor operates

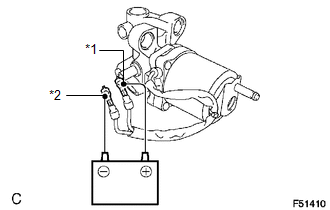

Text in Illustration

*1	Red Cable
*2	Black Cable

If the result is not as specified, replace the brake booster pump assembly.
