INSTALLATION
PROCEDURE
1. INSTALL HOOD LOCK ASSEMBLY
(a) Apply MP grease to the sliding areas of the hood lock assembly.
(b) Connect the hood lock control cable assembly.
(c) Connect the connector.
|

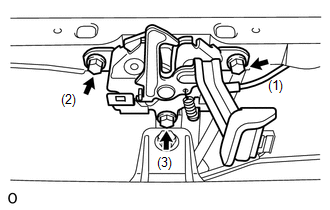

(d) Install the hood lock assembly with the 3 bolts in the order shown in the illustration. Torque: 7.5 N·m {76 kgf·cm, 66 in·lbf} |
|
2. INSTALL HOOD LOCK CONTROL CABLE COVER
|
(a) Pass the hood lock control cable assembly through the hood lock control cable cover. |
|
(b) Attach the claw to install the hood lock control cable cover.

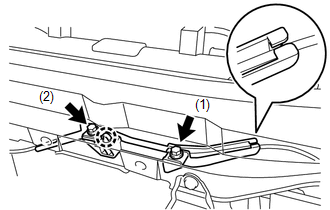

(c) Install the 2 screws in the order shown in the illustration.
Torque:
7.5 N·m {76 kgf·cm, 66 in·lbf}
3. INSTALL LOW PITCHED HORN ASSEMBLY
4. INSTALL RADIATOR GRILLE BRACKET
5. INSTALL HIGH PITCHED HORN ASSEMBLY
6. INSTALL FRONT BUMPER COVER (w/ Intuitive Parking Assist System)
(See page
)
7. INSTALL FRONT BUMPER COVER (w/o Intuitive Parking Assist System)
(See page
)
