Cargo hooks
Vehicles with third seats
Fold down the third seats.
Raise the hook to use.
The cargo hooks are provided for securing loose items.
Vehicles without third seats
Raise the hook to use.
The cargo hooks are provided for securing loose items.
Cargo net hooks
The cargo net itself is not included as original equipment.
Vehicles with third seats (pattern 1)
Raise the rear cargo hook to use.
Vehicles with third seats (pattern 2)
Fold down the third seats.
Raise the cargo hook to use.
Vehicles without third seats (pattern 1)
Raise the rear cargo hook to use.
Vehicles without third seats (pattern 2)
Raise the cargo hook to use.
Storage compartment
Type A (if equipped)
Open the storage compartment as shown.
Type B (if equipped)
Open the storage compartment as shown.
Slide deck (if equipped)

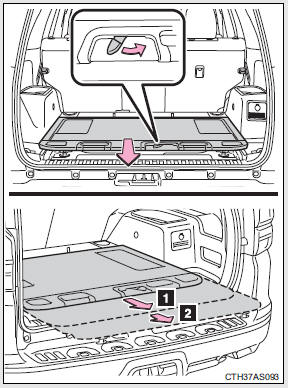

Slide the deck while turning the lock release lever, and then release the lever after sliding the deck to the lock position.
1. Half-slide locked position 2. Full-slide locked position
Grocery bag hooks
Type A
Type B (if equipped)
To use the grocery bag hooks, slide the slide deck to the fullslide locked position.
CAUTION
When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their stowed positions.
Slide deck operating precaution (if equipped)
• Be careful not to get hands or feet pinched by the slide deck.
• Be careful not to allow the slide deck to hit any persons or luggage while sliding the deck.
• Do not operate the slide deck while someone is on it.
Doing so may cause an accident.
• If operating the slide deck when the vehicle is stopped on an incline, the slide deck may move faster. Be careful not to allow the slide deck to hit you or pinch your fingers etc.
• After sliding the deck, make sure it is securely locked in position.
• Do not close the back door while any person is sitting on the slide deck or
any person is between the slide deck and back door.
• Do not stow any objects into the space between the slide deck rails.
NOTICE
To prevent damage to the cargo net hooks
Avoid hanging things other than a cargo net on them.
Slide deck weight capacity (if equipped)
Do not load anything heavier than 440 lb. (200 kg) on the sliding deck.
Grocery bag hook weight capacity
Do not hang any object heavier than 8.8 lb. (4 kg) on the grocery bag hooks.
When using the slide deck (if equipped)
• Do not close the back door while the slide deck is sliding out. Doing so may cause the back door or slide deck to break.
• If operating the slide deck when the vehicle is stopped on an incline, the slide deck may move faster. Be careful as luggage may become damaged or fly out and damage the cabin.
