Toyota 4Runner: Parts Location

Toyota 4Runner Service Manual / Audio / Visual / Telematics / Navigation / Multi Info Display / Navigation System / Parts Location

PARTS LOCATION

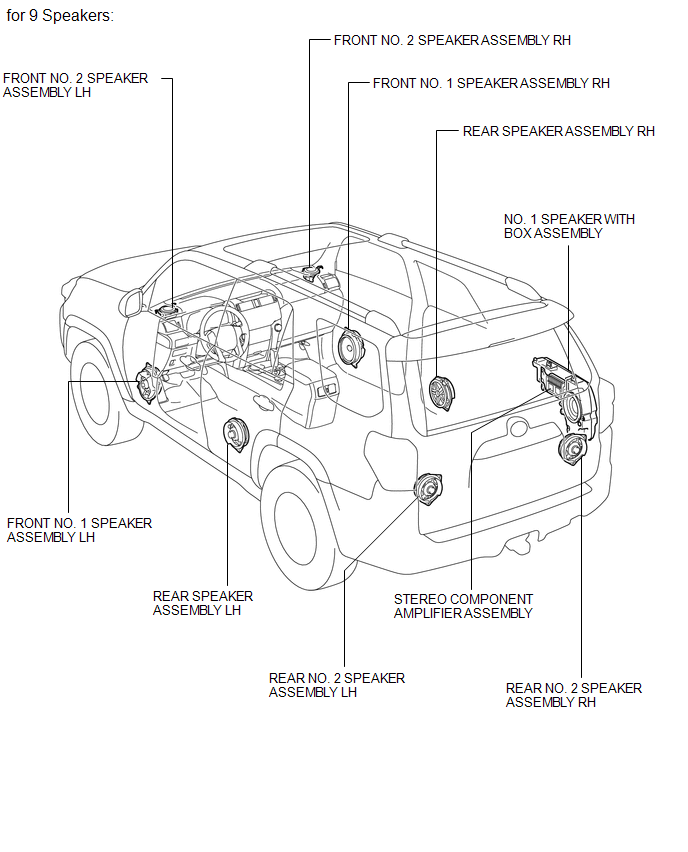

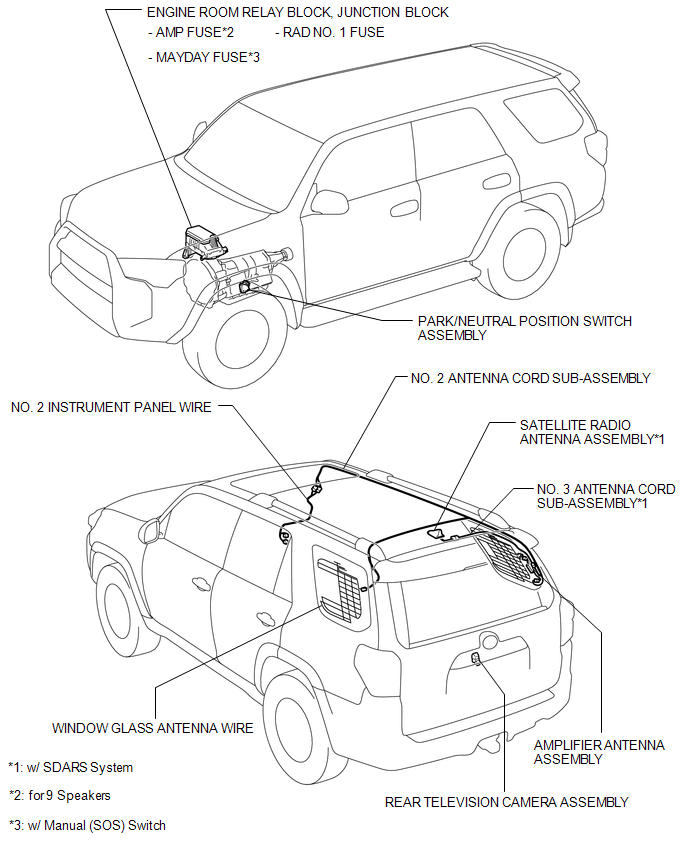

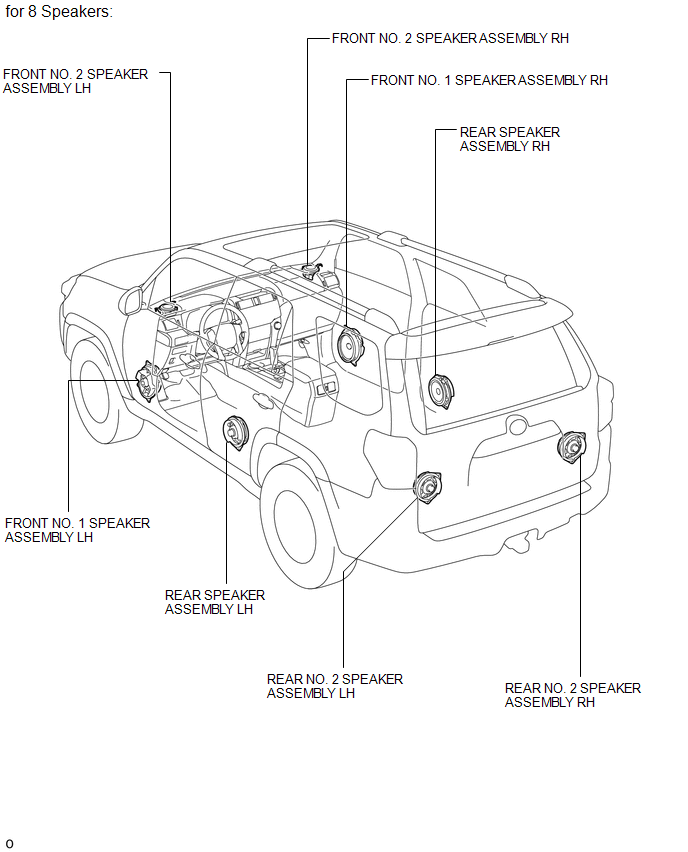

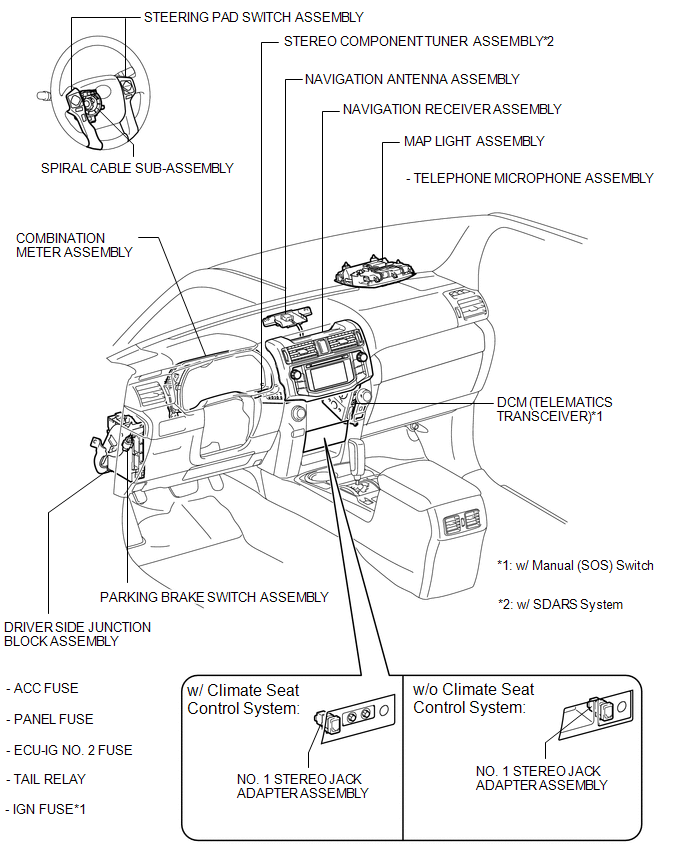

ILLUSTRATION

Precaution

PRECAUTION 1. IGNITION SWITCH EXPRESSIONS (a) The type of ignition switch used on this model differs according to the specifications of the vehicles. The expressions listed in the table below are ...

System Description

SYSTEM DESCRIPTION 1. NAVIGATION SYSTEM OUTLINE (a) Vehicle position tracking methods It is essential that the navigation system correctly tracks the current vehicle position and displays it on t ...
