Toyota 4Runner Service Manual / Audio / Visual / Telematics / Park Assist / Monitoring / Rear View Monitor System(for Radio And Display Type) / Parts Location

PARTS LOCATION

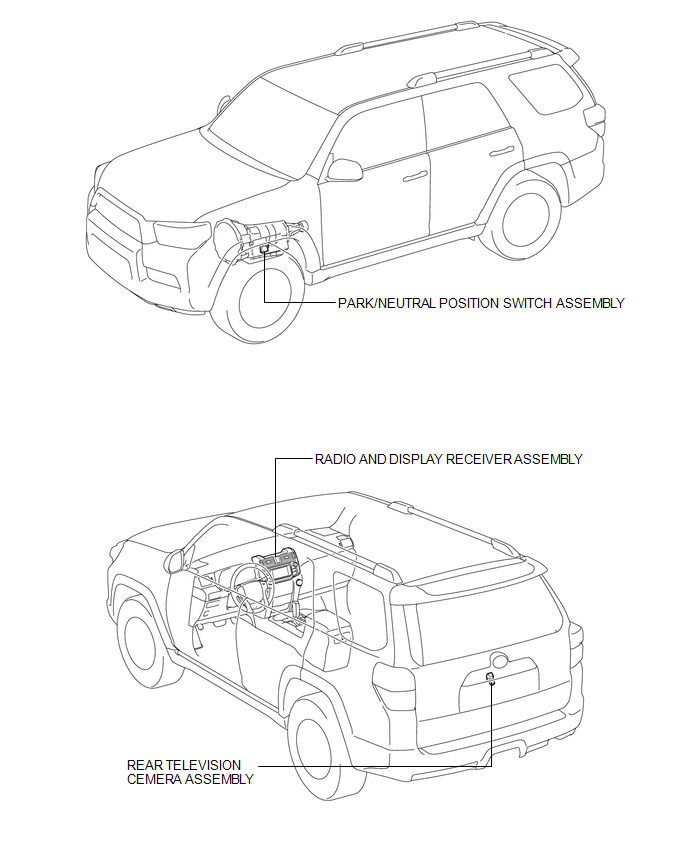

ILLUSTRATION

Rear View Monitor System(for Radio And Display Type)

...

Precaution

PRECAUTION 1. IGNITION SWITCH EXPRESSION HINT: The type of ignition switch used on this model differs according to the specifications of the vehicle. The expressions listed in the table below are ...
