Toyota 4Runner: Power outlets (12 V DC)

The power outlet can be used for 12 V accessories that run on less than 10 A.

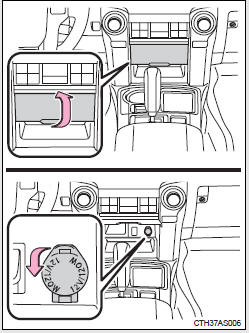

Center panel

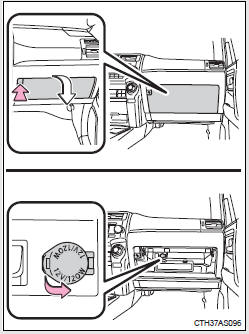

Glove box


Luggage compartment (vehicles without the 120 V AC)


Luggage compartment (vehicles with the 120 V AC)


The power outlet can be used when

Vehicles without a smart key system

The engine switch is in the “ACC” or “ON” position.

Vehicles with a smart key system

The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode.

NOTICE

To avoid damaging the power outlet

Close the power outlet lid when the power outlet is not in use.

Foreign objects or liquids that enter the power outlet may cause a short circuit.

To prevent blown fuse

Do not use an accessory that uses more than 12 V 10 A.

To prevent battery discharge

Do not use the power outlet longer than necessary when the engine is not running.
