Toyota 4Runner: Reassembly

Toyota 4Runner Service Manual / Drivetrain / Axle And Differential / Front Axle Hub(for 4wd) / Reassembly

REASSEMBLY

PROCEDURE

1. INSTALL FRONT AXLE HUB OIL SEAL LH

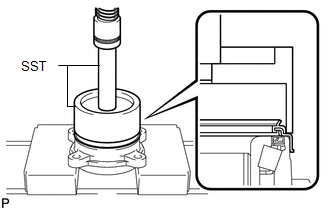

(a) Using SST and a press, press in a new oil seal.

SST: 09608-36010

SST: 09950-70010

09951-07100

NOTICE:

Do not damage the oil seal.

2. INSTALL FRONT AXLE WITH ABS ROTOR BEARING ASSEMBLY LH

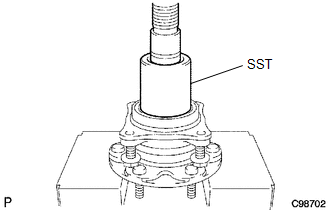

(a) Using SST and a press, install a new bearing to the front axle hub.

SST: 09649-17010

Disassembly

DISASSEMBLY PROCEDURE 1. REMOVE FRONT AXLE WITH ABS ROTOR BEARING ASSEMBLY LH (a) Gently fix the front axle hub in a vise between aluminum plates. ...

Installation

INSTALLATION CAUTION / NOTICE / HINT HINT: Use the same procedure for the RH and LH sides. The procedure listed below is for the LH side. PROCEDURE 1. INSTALL FRONT AXLE HUB SUB ...
