REMOVAL

CAUTION / NOTICE / HINT

HINT:

Use the same procedure for the RH and LH sides.
The procedure listed below is for the LH side.
When removing the window frame moulding, heat the vehicle body and window frame moulding using a heat light.

Standard:

Item	Temperature
Vehicle Body	40 to 60°C (104 to 140°F)
Window Frame Moulding	20 to 30°C (68 to 86°F)

NOTICE:

Do not heat the vehicle body or window frame moulding excessively.

PROCEDURE

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See page ).

2. REMOVE REAR DOOR INSIDE HANDLE BEZEL LH

3. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH

4. REMOVE REAR DOOR INNER GLASS WEATHERSTRIP LH

5. REMOVE REAR DOOR SERVICE HOLE COVER LH

6. REMOVE REAR DOOR GLASS RUN LH

7. REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY LH

8. REMOVE REAR DOOR QUARTER WINDOW GLASS LH

9. REMOVE REAR DOOR GLASS SUB-ASSEMBLY LH

10. REMOVE REAR DOOR BELT MOULDING LH

11. REMOVE REAR DOOR WEATHERSTRIP LH

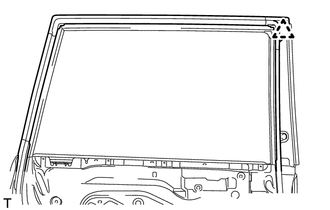

(a) Detach the clip and remove the upper part of the rear door weatherstrip so that the moulding can be removed.

12. REMOVE REAR DOOR FRONT WINDOW FRAME MOULDING LH

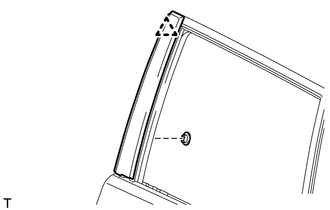

(a) Remove the door window frame moulding clip.

(b) Detach the clip and remove the double-sided tape to remove the rear door front window frame moulding.
