Toyota 4Runner: Removal

REMOVAL

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for both the RH and LH sides.
  • The procedure listed below is for the LH side.

PROCEDURE

1. REMOVE ROOF HEADLINING ASSEMBLY

(See page )

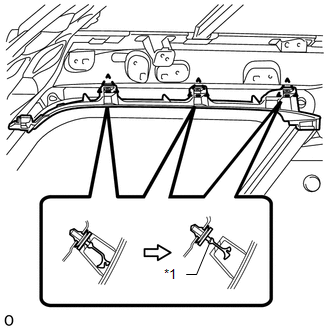

2. REMOVE ROOF SIDE RAIL GARNISH ASSEMBLY LH

(a) Detach the 3 clips.


(b) Cut off the 3 clips to remove the roof side rail garnish assembly LH.

(c) Remove 3 clips from the vehicle body.

Text in Illustration

*1

Clip

3. DISCONNECT WINDOW GLASS ANTENNA WIRE

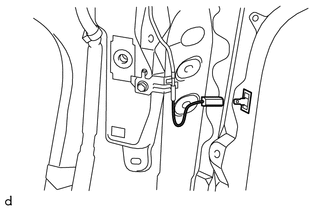

(a) Disconnect the window glass antenna wire connector (for LH side).

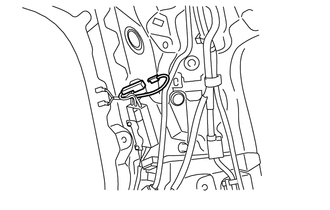

(b) Disconnect the window glass antenna wire connector (for RH side).


4. REMOVE REAR QUARTER WINDOW ASSEMBLY LH

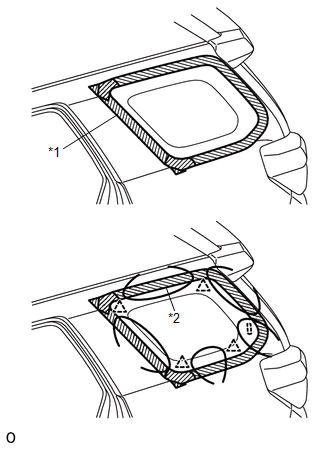

(a) From the interior, insert a piano wire between the vehicle body and rear quarter window assembly LH as shown in the illustration.

Text in Illustration

*1

Protective Tape

*2

Piano Wire

NOTICE:

When separating the rear quarter window assembly LH from the vehicle body, be careful not to damage the vehicle paint or interior/exterior ornaments.

HINT:

Apply protective tape to the outer surface of the vehicle body to prevent scratches.


(b) Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.

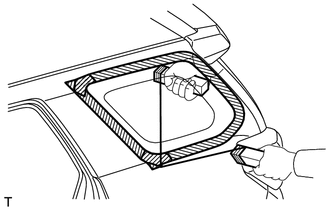

(c) Cut through the adhesive by pulling the piano wire around the rear quarter window assembly LH.

NOTICE:

Leave as much adhesive on the vehicle body as possible when removing the rear quarter window assembly LH.

(d) Using suction cups, remove the rear quarter window assembly LH.

5. REMOVE REAR QUARTER WINDOW ASSEMBLY RH

6. CLEAN VEHICLE BODY

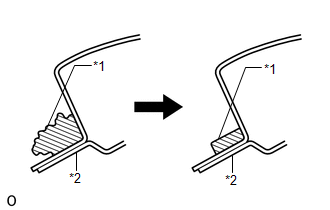

(a) Clean and shape the contact surface of the vehicle body.

Text in Illustration

*1

Adhesive

*2

Vehicle Body

(1) On the contact surface of the vehicle body, use a knife to cut away excess adhesive as shown in the illustration.

NOTICE:

Be careful not to damage the vehicle body.

HINT:

Leave as much adhesive on the vehicle body as possible.

(2) Clean the contact surface of the vehicle body with cleaner.

HINT:

Even if all the adhesive has been removed, clean the vehicle body.
