Toyota 4Runner: Removal

REMOVAL

PROCEDURE

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See page ).


2. REMOVE FRONT BUMPER COVER (w/o Intuitive Parking Assist System)

(See page )


3. REMOVE FRONT BUMPER COVER (w/ Intuitive Parking Assist System)

(See page )


4. REMOVE FRONT FENDER LINER RH

(See page )


5. DRAIN WINDSHIELD WASHER FLUID


6. REMOVE WASHER INLET SUB-ASSEMBLY


7. REMOVE WASHER JAR


8. REMOVE WASHER JAR PROTECTOR

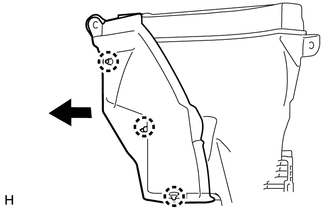

(a) Detach the 3 claws to remove the washer jar protector.


9. REMOVE LEVEL WARNING SWITCH ASSEMBLY

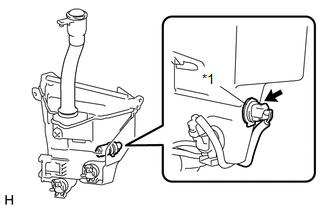

(a) Disconnect the connector.


(b) Remove the level warning switch assembly from the packing of the washer jar.

Text in Illustration
