REMOVAL
PROCEDURE
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable
is reconnected (See page ).
2. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
(a) Remove the lower No. 1 instrument panel airbag assembly (See page
).
3. REMOVE BRAKE PEDAL RETURN SPRING
4. REMOVE PUSH ROD PIN
(a) Remove the clip and push rod pin from the brake pedal lever.
5. REMOVE STOP LIGHT SWITCH ASSEMBLY
(a) Disconnect the stop light switch connector.
(b) Remove the stop light switch (See page ).

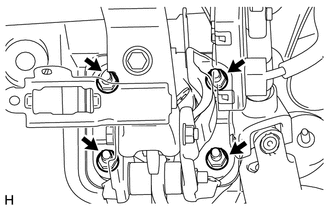

6. REMOVE BRAKE PEDAL SUPPORT ASSEMBLY
(a) Remove the brake pedal support reinforcement set bolt.
(b) Remove the hydraulic brake booster assembly (See page
).
(c) Remove the brake pedal support assembly. |
|
