Toyota 4Runner: Short in GPS Antenna (B15C0,B15C1)

DESCRIPTION

This DTC is stored when the DCM (Telematics Transceiver) detects an open or a short in the telephone and GPS antenna circuit. The DCM (Telematics Transceiver) receives signals at a radio frequency of between 1574.42 and 1576.42 MHz through the telephone and GPS antenna. The cable is a 50 Ω coaxial cable.

DTC Code

DTC Detection Condition

Trouble Area

B15C0

Current for the telephone and GPS antenna is more than the malfunction criterion for 10 seconds when the ignition switch is ON.

  • Telephone and GPS Antenna (Telephone Antenna Assembly)
  • Telephone and GPS Antenna Cord (No. 3 Antenna Cord Sub-assembly)
  • Telephone and GPS Antenna Cord (No. 2 Antenna Cord Sub-assembly)
  • Telephone and GPS Antenna Cord (Instrument Panel Wire)
  • DCM (Telematics Transceiver)

B15C1

Current for the telephone and GPS antenna is less than the malfunction criterion for 10 seconds when the ignition switch is ON.

HINT:

Refer to "Parts Location" for installation location of the telephone and GPS antenna cord (See page ).


PROCEDURE

1.

CHECK FOR DTC

(a) Turn the ignition switch off.

(b) Connect the Techstream to the DLC3.

(c) Turn the ignition switch to ON and wait for 10 seconds.

(d) Perform "Health Check" and check for current DTCs (See page ).


Result

Result

Proceed to

DTC B15C0 or B15C1 is output

A

DTC B15C0 and B15C1 is not output

B


B

CHECK FOR INTERMITTENT PROBLEMS

A

2.

INSPECT TELEPHONE AND GPS ANTENNA (DCM - TELEPHONE AND GPS ANTENNA)

(a) Disconnect the G46 telephone and GPS antenna connector.


(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

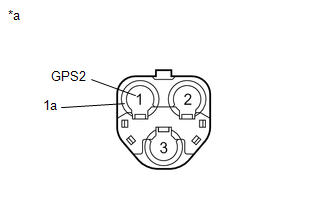

1 (GPS2) - 1a

Always

4 to 11 kΩ

Text in Illustration

*a

Telephone Antenna Assembly


NG

REPLACE TELEPHONE AND GPS ANTENNA (TELEPHONE ANTENNA ASSEMBLY)

OK

3.

INSPECT TELEPHONE AND GPS ANTENNA CORD (NO. 3 ANTENNA CORD SUB-ASSEMBLY)

(a) Disconnect the No. 3 antenna cord sub-assembly from the telephone antenna assembly connector.


(b) Disconnect the No. 3 antenna cord sub-assembly from the No. 2 antenna cord sub-assembly.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

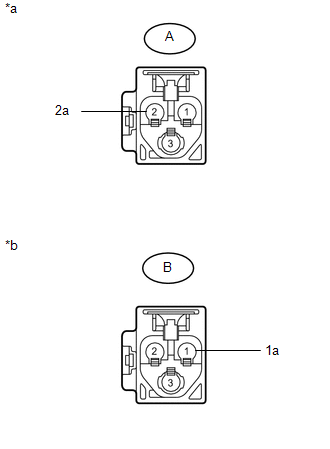

A-2 - B-1

Always

Below 1 Ω

A-2a - B-1a

Always

Below 1 Ω

A-2 - Body ground

Always

10 kΩ or higher

A-2a - Body ground

Always

10 kΩ or higher

Text in Illustration

*a

Telephone Antenna Assembly Side

*b

No. 2 Antenna Cord Sub-assembly Side


NG

REPLACE TELEPHONE AND GPS ANTENNA CORD (NO. 3 ANTENNA CORD SUB-ASSEMBLY)

OK

4.

INSPECT TELEPHONE AND GPS ANTENNA CORD (NO. 2 ANTENNA CORD SUB-ASSEMBLY)

(a) Disconnect the No. 2 antenna cord sub-assembly from the No. 3 antenna cord sub-assembly.


(b) Disconnect the No. 2 antenna cord sub-assembly from the No. 2 instrument panel wire.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

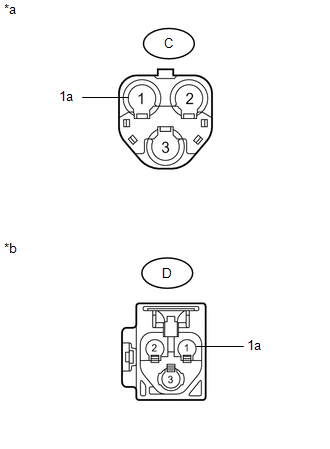

C-1 - D-1

Always

Below 1 Ω

C-1a - D-1a

Always

Below 1 Ω

C-1 - Body ground

Always

10 kΩ or higher

C-1a - Body ground

Always

10 kΩ or higher

Text in Illustration

*a

No. 3 Antenna Cord Sub-assembly Side

*b

Instrument Panel Wire Side


NG

REPLACE TELEPHONE AND GPS ANTENNA CORD (NO. 2 ANTENNA CORD SUB-ASSEMBLY)

OK

5.

INSPECT TELEPHONE AND GPS ANTENNA CORD (INSTRUMENT PANEL WIRE)

(a) Disconnect the No. 2 instrument panel wire from the No. 2 antenna cord sub-assembly.


(b) Disconnect the No. 2 instrument panel wire from the DCM (telematics transceiver).

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

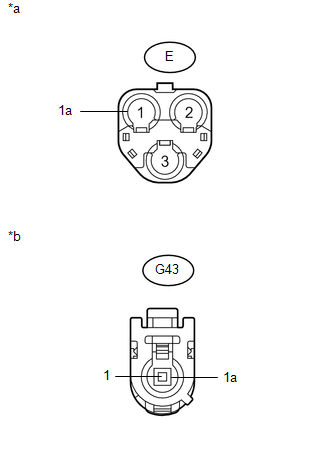

E-1 - G43-1

Always

Below 1 Ω

E-3a - G43-1a

Always

Below 1 Ω

E-3 - Body ground

Always

10 kΩ or higher

E-3a - Body ground

Always

10 kΩ or higher

Text in Illustration

*a

No. 2 Antenna Cord Sub-assembly Side

*b

DCM (Telematics Transceiver) Side


NG

REPLACE TELEPHONE AND GPS ANTENNA CORD (INSTRUMENT PANEL WIRE)

OK

6.

REPLACE TELEPHONE AND GPS ANTENNA (TELEPHONE ANTENNA ASSEMBLY)

(a) Replace the telephone antenna assembly with a normally functioning one and check if the same problem occurs again (See page
).

OK:

The system returns to normal.


OK

END (TELEPHONE AND GPS ANTENNA IS DEFECTIVE)

NG

7.

REPLACE DCM (TELEMATICS TRANSCEIVER)

(a) Replace the DCM (Telematics Transceiver) (See page ).


NOTICE:

  • The ignition switch must be off.
  • Do not replace the DCM (Telematics Transceiver) with one from another vehicle.

NEXT

PERFORM DCM ACTIVATION

Telematics Transceiver Malfunction (B15A8)
DESCRIPTION This DTC is stored when an error in EEPROM or PLL IC is detected during the DCM (Telematics Transceiver) self-check. The EEPROM (Electrically Erasable Programmable Read-Only Memory) s ...

Airbag Signal Malfunction/Not Input (B15C4)
DESCRIPTION If the DCM (Telematics Transceiver) detects an error in the communication between the DCM (Telematics Transceiver) and center airbag sensor assembly as a result of the DCM (Telematics ...
