Toyota 4Runner: System Diagram

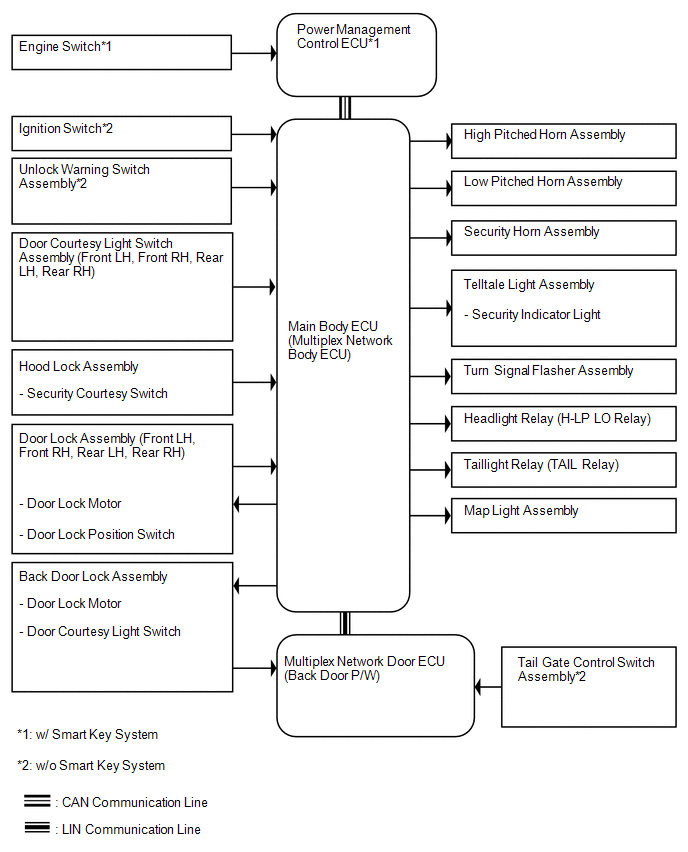

SYSTEM DIAGRAM


System Description
SYSTEM DESCRIPTION 1. THEFT DETERRENT SYSTEM DESCRIPTION (a) The theft deterrent system is designed to deter vehicle break-ins and theft. If an attempted break-in or theft is detected, the vehicle ...

How To Proceed With Troubleshooting
CAUTION / NOTICE / HINT HINT: Use these procedures to troubleshoot the theft deterrent system. *: Use the Techstream. The troubleshooting procedures for the theft deterrent system ...
