The Multi-terrain Select system has 4 terrain modes. When a terrain mode is selected in accordance with terrain conditions, engine power and active traction control system is controlled to enhance off-road drivability.
Additionally, guidance messages such as transfer mode selection advice are displayed on the accessory meter to assist the driver in operating the vehicle.

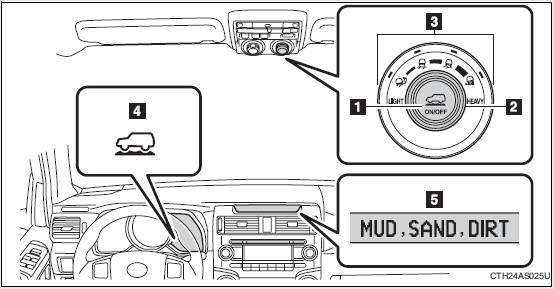

1. “ON/OFF” switch
2. Mode selector dial
3. Mode indicators
4. Multi-terrain Select indicator
5. Accessory meter
Multi-terrain Select modes

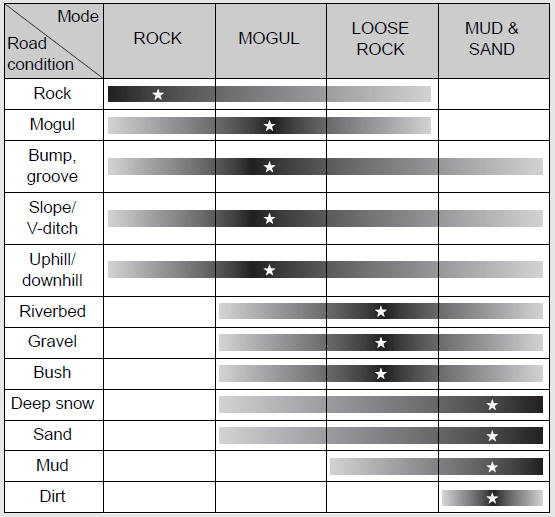

The following table shows some typical terrains and the recommended Multi-terrain Select modes.
Multi-terrain Select can be activated when
• Vehicle speed is approximately 7 mph (12 km/h) or less.
• MUD & SAND: The front-wheel drive control lever or switch is in L4 or H4.
LOOSE ROCK, MOGUL and ROCK: The front-wheel drive control lever or switch is in L4.
• Crawl Control is not operating.
