Toyota 4Runner: Parts Location

PARTS LOCATION

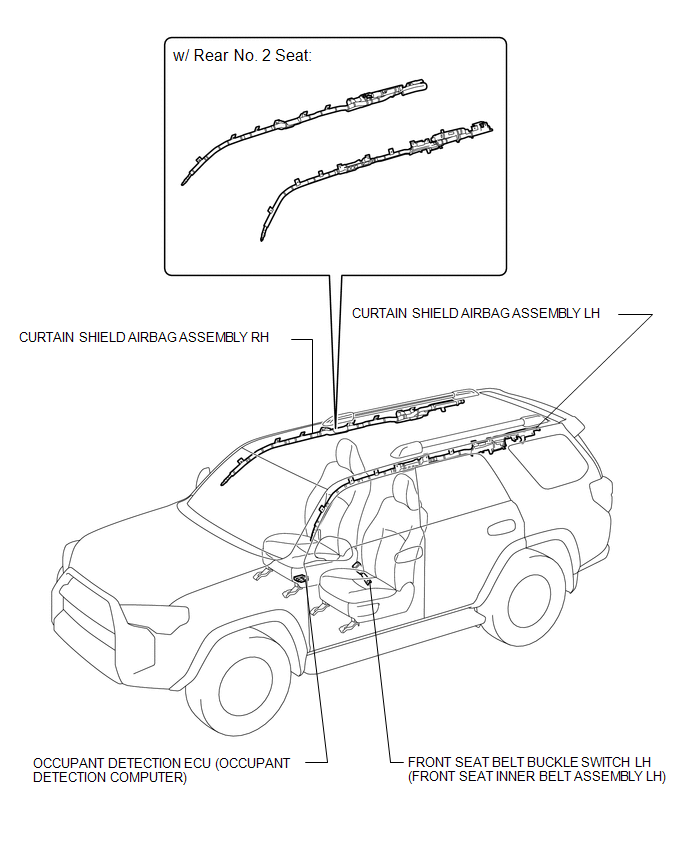

ILLUSTRATION

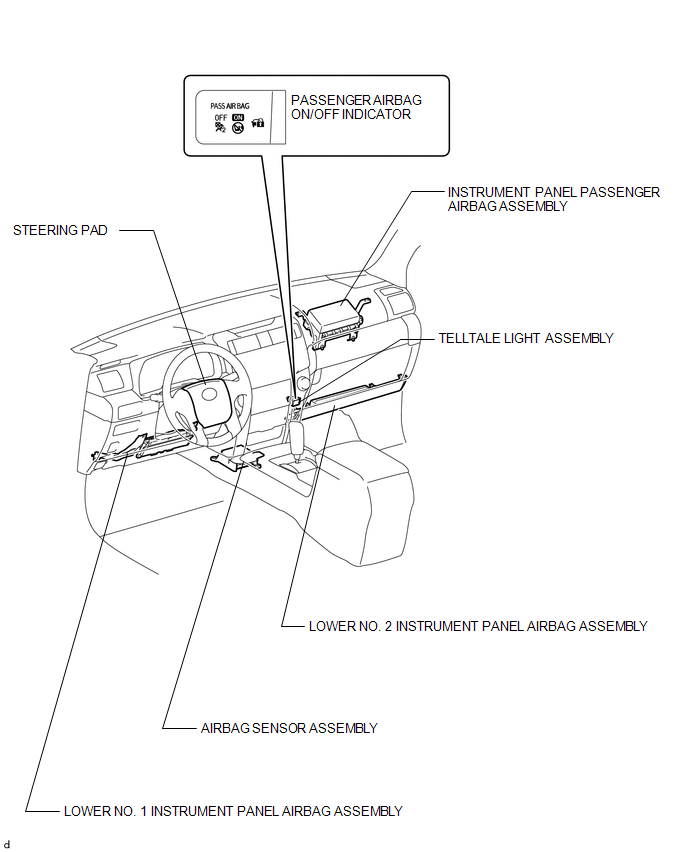

ILLUSTRATION

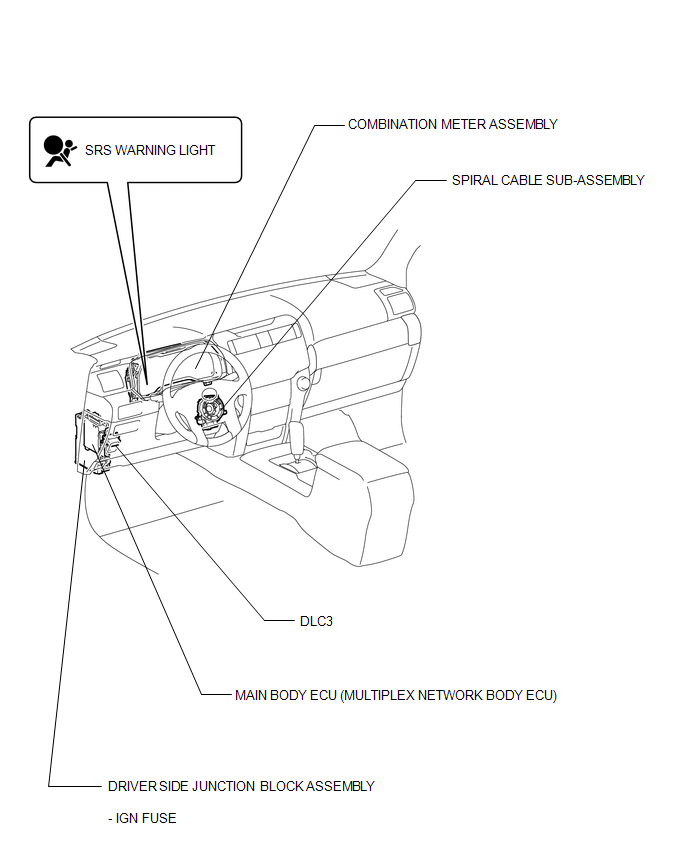

ILLUSTRATION

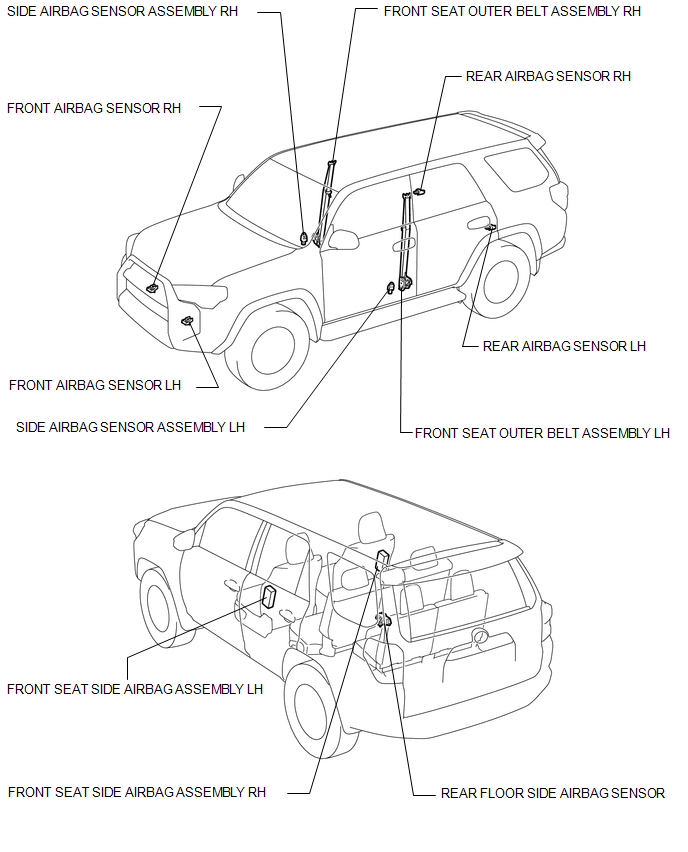

ILLUSTRATION


Precaution
PRECAUTION CAUTION: This vehicle is equipped with a Supplemental Restraint System (SRS), which consists of a steering pad, instrument panel passenger airbag, curtain shield airbag, f ...

System Diagram
SYSTEM DIAGRAM Transmitting ECU (Transmitter) Receiving ECU Signal Communication Method Center Airbag Sensor ECM ...
