Toyota 4Runner: Removal

REMOVAL

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH and LH sides.
  • The procedure listed below is for the LH side.

PROCEDURE

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See page ).


2. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH LH


3. REMOVE NO. 2 DOOR INSIDE HANDLE BEZEL LH


4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH


5. REMOVE FRONT DOOR GLASS WEATHERSTRIP INNER LH


6. REMOVE SIDE AIRBAG SENSOR ASSEMBLY LH

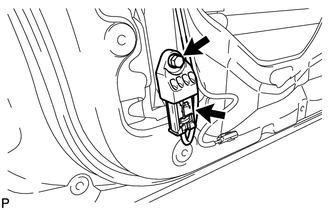

(a) Disconnect the connector.


(b) Remove the bolt and side airbag sensor.

On-vehicle Inspection
ON-VEHICLE INSPECTION CAUTION / NOTICE / HINT HINT: Use the same procedure for the RH and LH sides. The procedure listed below is for the LH side. PROCEDURE 1. CHECK SIDE AIRBAG ...
