Toyota 4Runner: Components

COMPONENTS

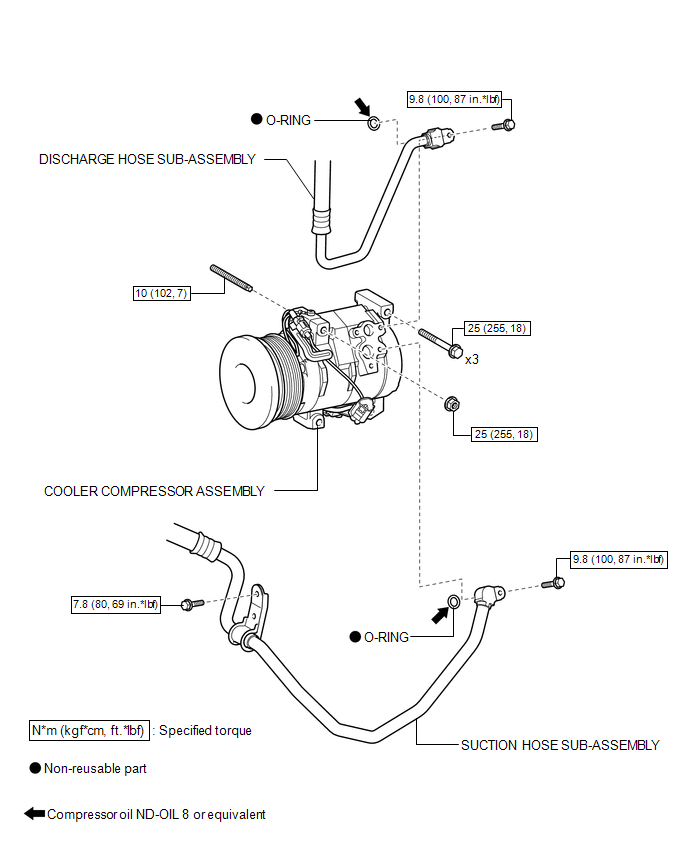

ILLUSTRATION

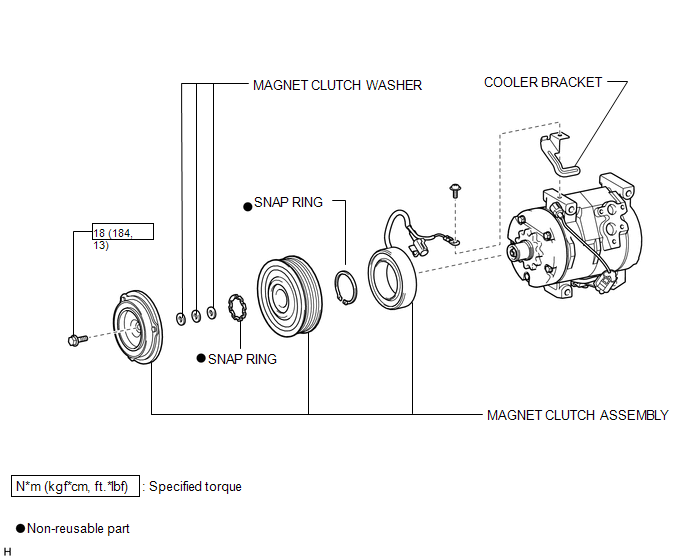

ILLUSTRATION


Compressor
...

Disassembly
DISASSEMBLY PROCEDURE 1. REMOVE COOLER BRACKET (a) Detach the clamp. (b) Remove the screw and cooler bracket. 2. REMOVE MAGNET CLUTCH ASSEMBLY (a) Clamp the cooler compressor in a vise. (b) ...
