Toyota 4Runner: Components

COMPONENTS

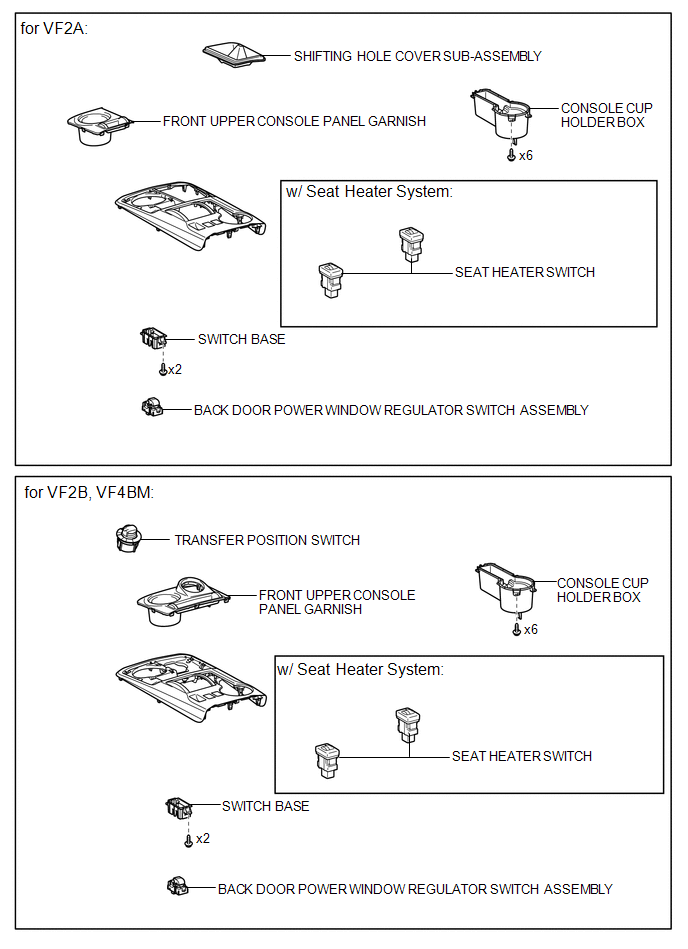

ILLUSTRATION

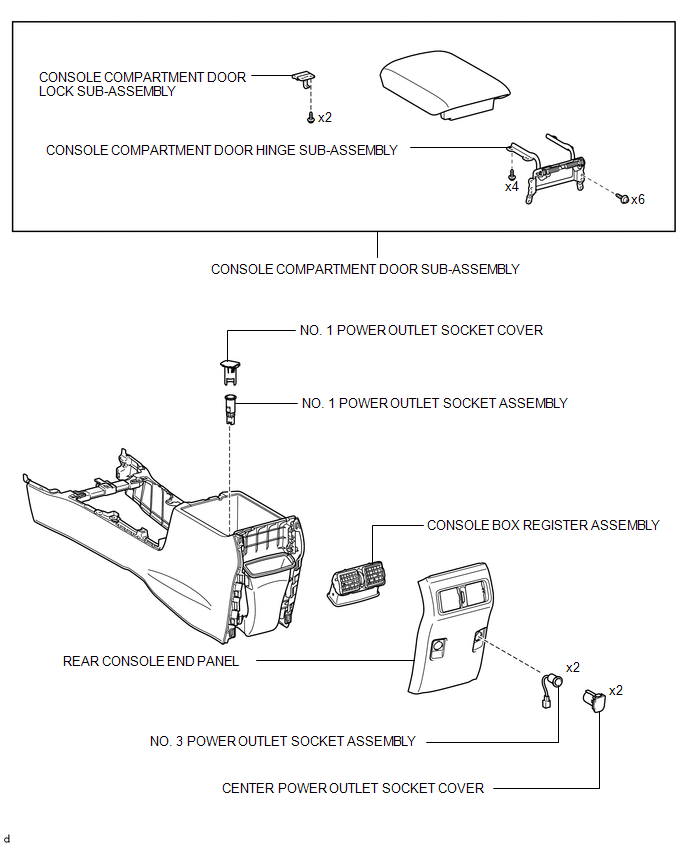

ILLUSTRATION

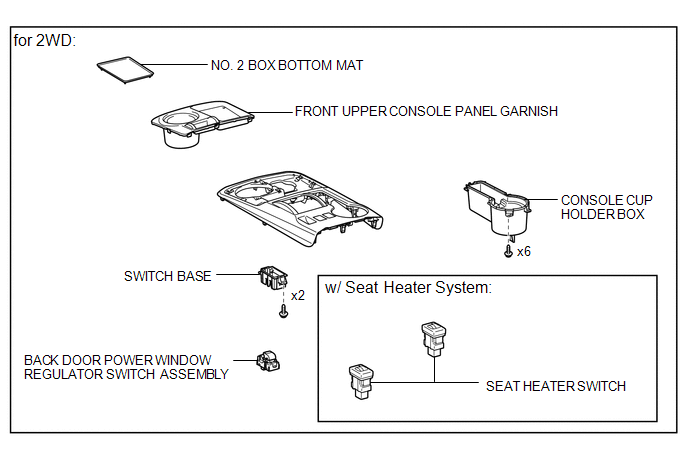

ILLUSTRATION

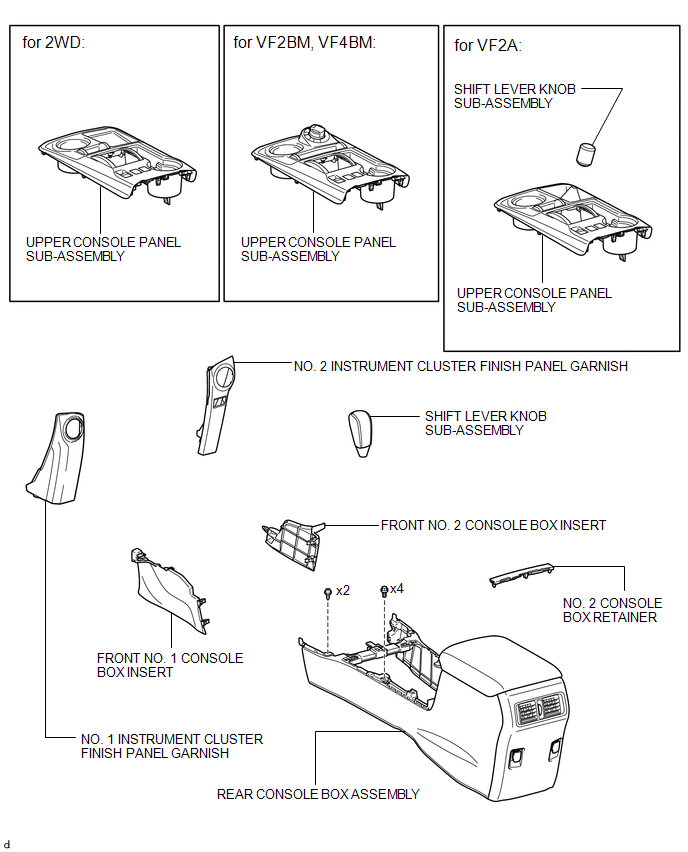

ILLUSTRATION


Front Console Box
...

Disassembly
DISASSEMBLY PROCEDURE 1. REMOVE NO. 1 POWER OUTLET SOCKET ASSEMBLY 2. REMOVE NO. 1 POWER OUTLET SOCKET COVER 3. REMOVE REAR CONSOLE END PANEL (a) Detach the 4 clips and 4 claws t ...
