Toyota 4Runner: Components

COMPONENTS

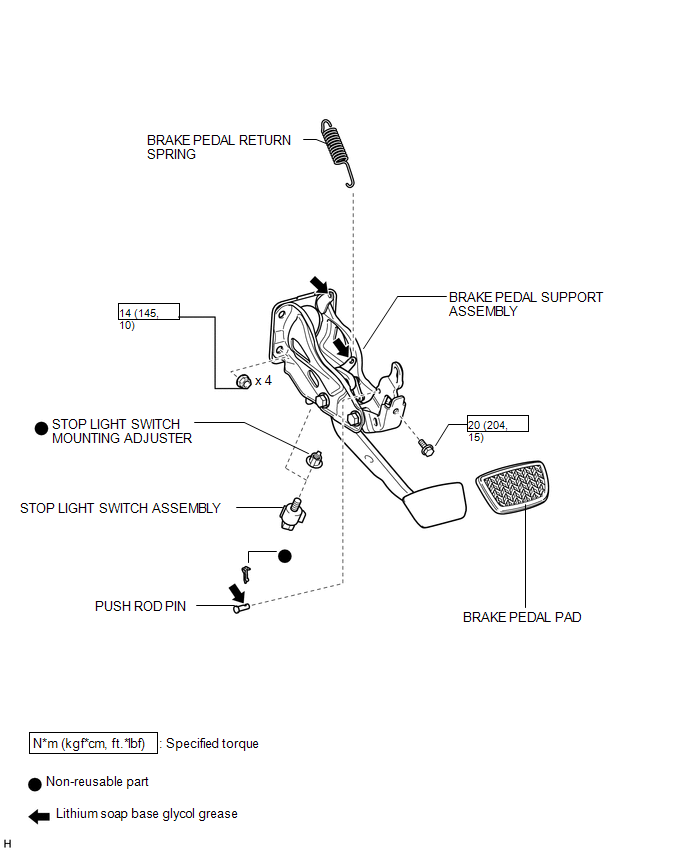

ILLUSTRATION


Brake Pedal(for Hydraulic Brake Booster)
...

Disassembly
DISASSEMBLY PROCEDURE 1. REMOVE BRAKE PEDAL PAD (a) Remove the brake pedal pad from the brake pedal sub-assembly. 2. REMOVE STOP LIGHT SWITCH MOUNTING ADJUSTER (a) Remove the stop light switch mo ...
