COMPONENTS

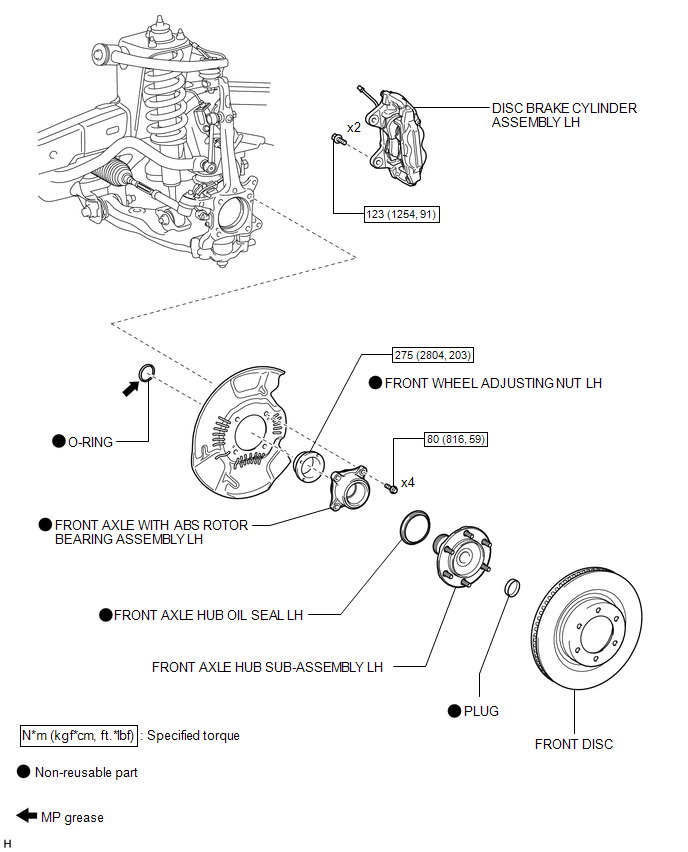

ILLUSTRATION
On-vehicle InspectionDiagnostic Trouble Code Chart
DIAGNOSTIC TROUBLE CODE CHART
HINT:
If a trouble code is output during the DTC check, inspect the trouble
areas listed for that code. For details of the code, refer to the "See page"
below.
*: The air conditioning amplifier stor ...
BUS IC Communication Malfunction (B1497/97)
DESCRIPTION
The air conditioning harness assembly connects the No. 1 air conditioning amplifier
assembly and each servo motor. The No. 1 air conditioning amplifier assembly supplies
power and sends operation instructions to each servo motor through the ai ...
