Toyota 4Runner: Disassembly

Toyota 4Runner Service Manual / Drivetrain / Drive Shaft / Propeller Shaft / Propeller Shaft Assembly(for 4wd) / Disassembly

DISASSEMBLY

PROCEDURE

1. REMOVE REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER BEARING

HINT:

Use the same procedure for all rear propeller shaft universal joint spider bearing.

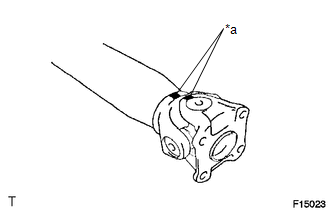

(a) Place matchmarks on the flange yoke and sleeve yoke.

Text in Illustration

Matchmark

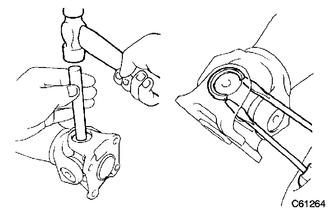

(b) Using a brass bar and a hammer, slightly tap in the spider bearing outer races.

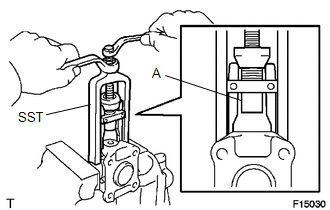

(d) Using SST, remove the spider bearing from the sleeve yoke.

SST: 09332-25010

HINT:

Before installing SST, sufficiently raise the part labeled A. If the part labeled A is too low, it may be difficult to install SST.

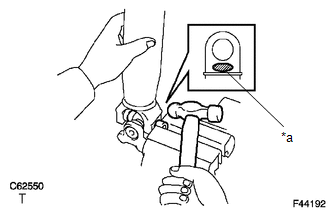

(e) Clamp the spider bearing outer race in a vise and tap off the propeller shaft with a hammer.

Text in Illustration

*a	Hammering Point

HINT:

Remove the spider bearing on opposite side in the same procedure.

NOTICE:

Do not tap the shaft.

(f) Install the 2 removed spider bearing outer races to the universal joint spider.

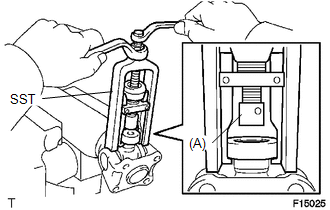

(g) Using SST, remove the bearing from the yoke.

SST: 09332-25010

HINT:

Sufficiently raise the part indicated by (A) so that it does not come into contact with the bearing.

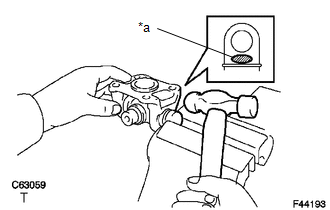

(h) Clamp the outer bearing race in a vise between aluminum plates and tap off the yoke with a hammer.

Text in Illustration

*a	Hammering Point

(i) Remove the universal joint spider.
