Toyota 4Runner: Inspection

INSPECTION

PROCEDURE

1. INSPECT FRONT PROPELLER SHAFT ASSEMBLY

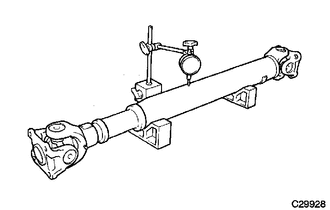

(a) Using a dial indicator, check the propeller shaft runout.

Maximum runout:

0.3 mm (0.0118 in.)

If the shaft runout is more than the maximum, replace the propeller shaft.


2. INSPECT FRONT PROPELLER SHAFT UNIVERSAL JOINT SPIDER BEARING

(a) Check the spider bearings for wear or damage.

If necessary, replace the spider bearing.

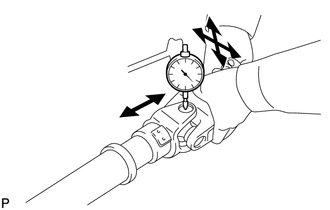

(b) Check the spider bearing axial play by turning the yoke while holding the shaft tightly.

Maximum bearing axial play:

0.0 mm (0 in.)

If the axial play is more than the maximum, replace the spider bearing.


Disassembly
DISASSEMBLY PROCEDURE 1. REMOVE FRONT UNIVERSAL JOINT SPIDER BEARING HINT: Use the same procedure for all front propeller shaft universal joint spider bearing. (a) Place matchmarks on ...

Reassembly
REASSEMBLY PROCEDURE 1. INSTALL FRONT PROPELLER SHAFT UNIVERSAL JOINT SPIDER BEARING HINT: Use the same procedure for all propeller shaft universal joint spider bearing. (a) Apply MP g ...
