INSTALLATION
CAUTION / NOTICE / HINT
CAUTION:
Wear protective gloves. Sharp areas on the parts may injure your hands.
HINT:
A bolt without a torque specification is shown in the standard bolt chart (See
page
).
PROCEDURE
1. INSTALL REAR NO. 1 SEAT INNER BELT ASSEMBLY LH
(a) Install the inner belt and connect the center outer belt with the bolt.
Torque:
42 N·m {428 kgf·cm, 31 ft·lbf}
NOTICE:

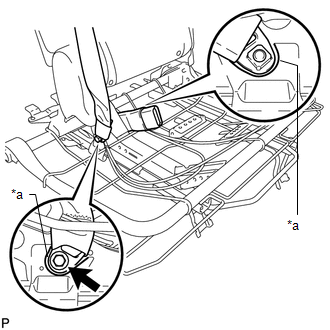

Do not allow the anchor part of the front seat inner belt assembly to overlap the protruding part of the front seat adjuster.
Text in Illustration|
*a |
Protruding Part |
2. INSTALL SEAT CUSHION COVER WITH PAD
3. INSTALL REAR SEATBACK LOCK STRIKER COVER LH
4. INSTALL REAR SEAT CUSHION MOULDING LH
5. INSTALL CENTER SEAT HINGE COVER RH
6. INSTALL RECLINING ADJUSTER RELEASE HANDLE LH
7. INSTALL REAR SEAT UPPER RECLINING COVER LH
8. INSTALL REAR SEAT ASSEMBLY LH
(a) Install the rear seat assembly LH (See page
).
