Toyota 4Runner: Installation

INSTALLATION

PROCEDURE

1. INSTALL INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

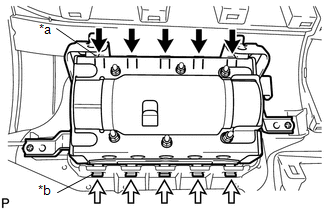

(a) Attach the 5 hooks (A).

Text in Illustration

*a

Hook A

*b

Hook B


(b) Attach the 5 hooks (B) to install the instrument panel passenger airbag.

(c) Install the 2 screws.

2. INSTALL NO. 2 INSTRUMENT PANEL WIRE

(a) Connect the 2 connectors to install the wire.

NOTICE:

When handling the airbag connector, take care not to damage the airbag wire harness.

(b) Attach the clamp.

3. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY

(a) Install the instrument panel sub-assembly (See page ).
