INSTALLATION
PROCEDURE
1. INSTALL TRANSMISSION VALVE BODY ASSEMBLY
(a) Install the spring and check ball body.
|

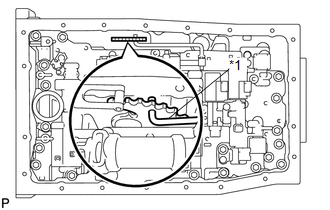

(b) Insert the pin of the manual valve into the hole of the manual valve lever. Text in Illustration
|
|
|

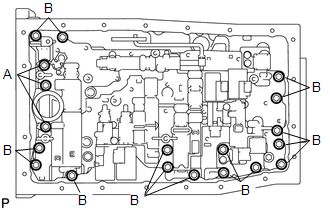

(c) Install the transmission valve body assembly with the 19 bolts. Torque: 11 N·m {112 kgf·cm, 8 ft·lbf} HINT: Each bolt length is indicated below. 36 mm (1.42 in.) for bolt A 25 mm (0.984 in.) for bolt B |
|
(d) Install the detent spring cover and detent spring with the bolt.
Torque:
10 N·m {102 kgf·cm, 7 ft·lbf}
2. CONNECT TRANSMISSION WIRE
3. INSTALL VALVE BODY OIL STRAINER ASSEMBLY
4. INSTALL AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY
5. ADD AUTOMATIC TRANSMISSION FLUID
(a) Add automatic transmission fluid (See page
).
6. PERFORM RESET MEMORY
(a) Perform the RESET MEMORY procedures (A/T initialization) (See page
).
